Renault Koleos Service Repair Manual: Floor carpet: Removal - Refitting

Renault Koleos Service Repair Manual / Trim and upholstery / Body internal trim / Floor carpet: Removal - Refitting

IMPORTANT To prevent the pyrotechnic components from not working or being accidentally triggered (airbags or pretensioners), wait at least 3 minutes after disconnecting the battery.



IMPORTANT Never handle the pyrotechnic systems (pretensioners or airbags) near to a source of heat or naked flame - they may be triggered.

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Disconnect the battery (see Battery : Removal - Refitting) (80A, Battery).
  • Remove:
    • the dashboard (see Dashboard: Removal - Refitting) (57A, Interior equipment),
    • the dashboard cross member (see Dashboard cross member: Removal - Refitting) (42A, Upper front structure),
    • the air distribution unit (see Air distribution unit: Removal - Refitting) (61A, Heating system),
    • the central console (see Centre console: Removal - Refitting) (57A, Interior equipment),
    • the gear control unit (see Gear control unit: Removal - Refitting) (37A, Mechanical component controls),
    • the airbag computer (see Airbag computer: Removal - Refitting) (88C, Airbag and pretensioners),
    • the front door sill lining (see 71A, Body internal trim, Front door sill lining: Removal - Refitting, page 71A-7) ,
    • the rear door sill lining (see 71A, Body internal trim, Rear door sill lining: Removal - Refitting, page 71A-8) ,
    • the B-pillar trim (see 71A, Body internal trim, Bpillar trim: Removal - Refitting, page 71A-14) ,
    • the front seat (see 75A, Front seat frames and runners, Complete front seat: Removal - Refitting, page 75A-6) .

II - OPERATION FOR REMOVAL OF PART CONCERNED

Body internal trim

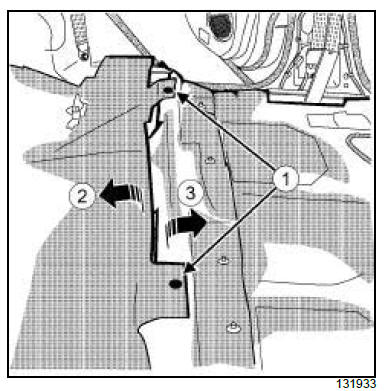

  • Remove the clips (1) .
  • Remove:
    • the rear carpet at (2) ,
    • the rear section of the front carpet at (3) .

Body internal trim

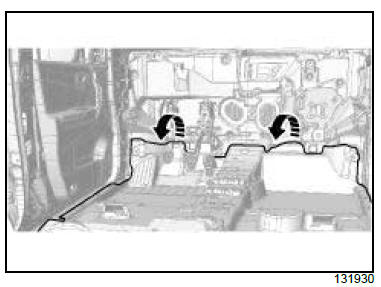

  • Remove the front section of the carpet.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the front carpet,
    • the rear carpet,
    • the clips.

II - FINAL OPERATION.

  • Refit:
    • the front seat (see 75A, Front seat frames and runners, Complete front seat: Removal - Refitting, page 75A-6) ,
    • the B-pillar trim (see 71A, Body internal trim, B-pillar trim: Removal - Refitting, page 71A-14) ,
    • the rear door sill lining (see 71A, Body internal trim, Rear door sill lining: Removal - Refitting, page 71A-8) ,
    • the front door sill lining (see 71A, Body internal trim, Front door sill lining: Removal - Refitting, page 71A-7) ,
    • the airbag computer (see Airbag computer: Removal - Refitting) (88C, Airbag and pretensioners),
    • the gear control unit (see Gear control unit: Removal - Refitting) (37A, Mechanical component controls),
    • the central console (see Centre console: Removal - Refitting) (57A, Interior equipment),
    • the air distribution unit (see Air distribution unit: Removal - Refitting) (61A, Heating system),
    • the dashboard cross member (see Dashboard cross member: Removal - Refitting) (42A, Upper front structure),
    • the dashboard (see Dashboard: Removal - Refitting) (57A, Interior equipment).
  • Connect the battery (see Battery : Removal - Refitting) (80A, Battery).
