REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Remove:
    • the rear parcel shelf (see Rear parcel shelf: Removal - Refitting) (57A, Interior equipment),
    • the rear inner sill trim (see Rear door sill lining: Removal - Refitting) (71A, Body internal trim),
    • the luggage compartment floor trim (see Luggage compartment floor lining: Removal - Refitting) (71A, Body internal trim),
    • the rear panel trim (see Rear end panel lining: Removal - Refitting) (71A, Body internal trim).

II - OPERATION FOR REMOVAL OF PART CONCERNED

Electrical equipment

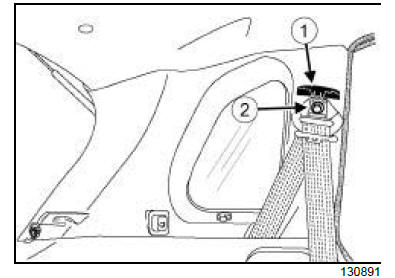

  • Open the cover (1) of the rear side seat belt upper bolt.
  • Remove the rear side seat belt upper bolt (2) .

Electrical equipment

  • Remove:

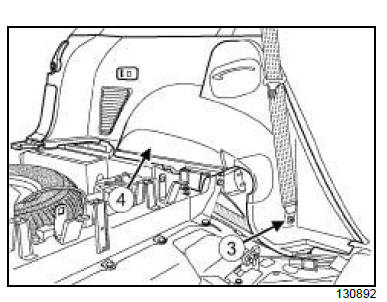

    • the cover of the rear side seat belt lower bolt,
    • the rear side seat belt lower bolt (3) ,
    • the rear pillar lower trim (4) (see C-pillar lower trim: Removal - Refitting) (71A, Body internal trim).

Electrical equipment

  • Remove:

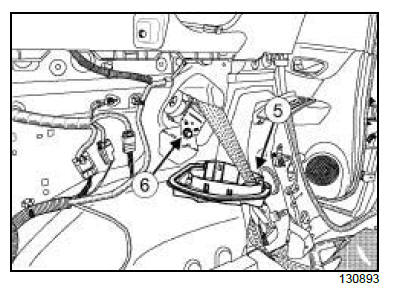

    • the rear side seat belt cover (5) ,
    • the rear side seat belt automatic inertia reel bolt (6) ,
    • the " rear side seat belt - rear side seat belt automatic inertia reel " assembly.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Fit the " rear side seat belt - rear side seat belt automatic inertia reel " assembly in place.
  • Refit:
    • the rear side seat belt automatic inertia reel bolt,
    • the rear side seat belt cover.

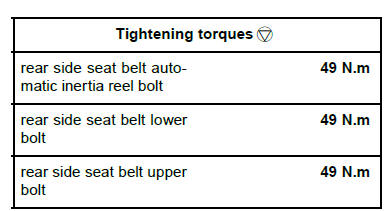

  • Torque tighten the rear side seat belt automatic inertia reel bolt (49 N.m).
  • Refit:
    • the lower trim of the C-pillar (see C-pillar lower trim: Removal - Refitting) (71A, Body internal trim),
    • the rear side seat belt lower bolt.
  • Torque tighten the rear side seat belt lower bolt (49 N.m).
  • Refit:
    • the cover of the rear side seat belt lower bolt,
    • the rear side seat belt upper bolt.
  • Torque tighten the rear side seat belt upper bolt (49 N.m).
  • Refit the cover of the rear side seat belt upper bolt.

II - FINAL OPERATION.

  • Refit:
    • the rear panel trim (see Rear end panel lining: Removal - Refitting) (71A, Body internal trim),
    • the luggage compartment floor trim (see Luggage compartment floor lining: Removal - Refitting) (71A, Body internal trim),
    • the rear inner sill trim (see Rear door sill lining: Removal - Refitting) (71A, Body internal trim),
    • the rear parcel shelf (see Rear parcel shelf: Removal - Refitting) (57A, Interior equipment).
