Renault Koleos Service Repair Manual: Rear parcel shelf: Removal - Refitting

REMOVAL

OPERATION FOR REMOVAL OF PART CONCERNED

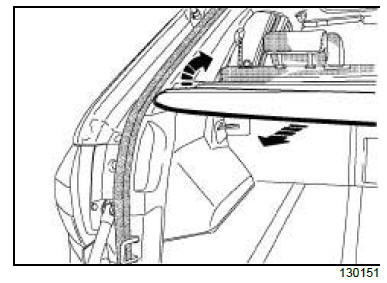

• Pull the parcel shelf slightly to free it from its contact points.

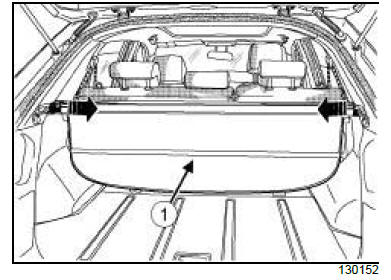

• Remove the parcel shelf (1) .

REFITTING

REFITTING OPERATION FOR PART CONCERNED

• Position the rear parcel shelf.

Storage compartment and flap under the seat: Removal - Refitting

REMOVAL

I - REMOVAL PREPARATION OPERATION

• Remove the complete front seat (see Complete front seat: Removal - Refitting) (75A, Front seat frames and runners).

II - OPERATION FOR REMOVAL OF PART CONCERNED

• Remove:

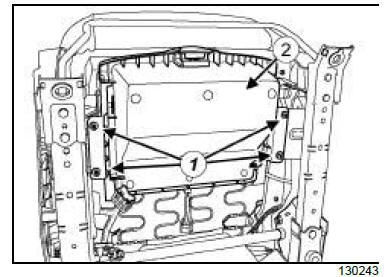

  • the bolts (1) ,
  • the flap (2) and the storage under the seat.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

• Refit:
  • the flap and the storage under the seat,
  • the bolts.

II - FINAL OPERATION.

• Refit the complete front seat (see Complete front seat: Removal - Refitting) (75A, Front seat frames and runners).
