Renault Koleos Service Repair Manual: Sun visor: Removal - Refitting

Renault Koleos Service Repair Manual / Mechanisms and accessories / Interior equipment / Sun visor: Removal - Refitting

REMOVAL

OPERATION FOR REMOVAL OF PART CONCERNED

Interior equipment

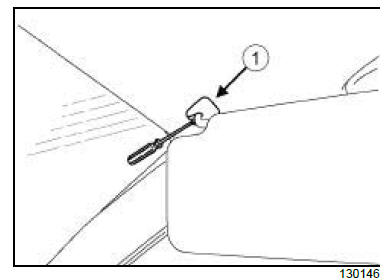

  • Unclip the cover (1) of the sun visor.

Interior equipment

  • Remove:
    • the bolts (2) ,
    • the sun visor cover (3) .
  • Disconnect the connector from the sun visor bulb (depending on the equipment level).
  • Turn the sun visor support 90 degrees by inserting a flat-blade screwdriver through the support hole.
  • Remove the sun visor support (4) .

REFITTING

REFITTING OPERATION FOR PART CONCERNED

Interior equipment

  • Refit the sun visor support (5) .
  • Connect the sun visor bulb connector.
  • Refit the bolts. (6)
  • Fit the sun visor cover.

Grab handle: Removal - Refitting

Interior equipment

REMOVAL

OPERATION FOR REMOVAL OF PART CONCERNED

Interior equipment

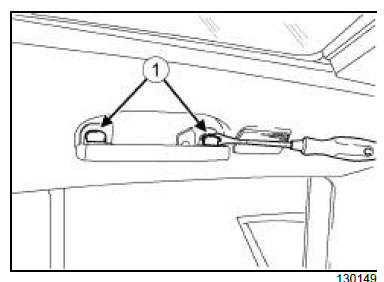

  • Remove the clips (1) using the tool (Car. 1597).

Interior equipment

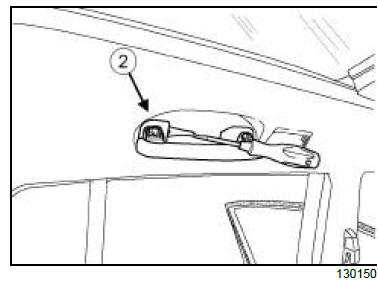

  • Remove the grab handle (2) .

REFITTING

REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the grab handle,
    • the handle clips.
