Renault Koleos Service Repair Manual: Rear side door lock: Removal - Refitting

Side opening element mechanisms

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Remove:
    • the rear side door trim (see Rear side door trim: Removal - Refitting) (72A, Side opening element trim),
    • the rear side door sealing film (see Door sealing film: Removal - Refitting) (65A, Door sealing),
    • the lock blanking cover.

II - OPERATION FOR REMOVAL OF PART CONCERNED

Side opening element mechanisms

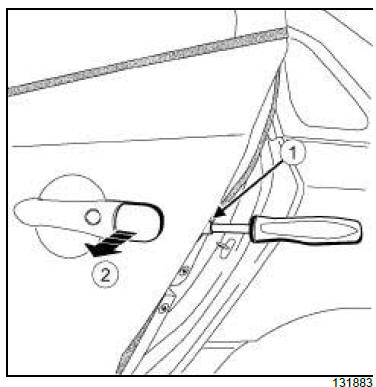

  • Undo the bolt (1) without removing it.
  • Remove:
    • the cover,
    • the barrel at (2) .

Side opening element mechanisms

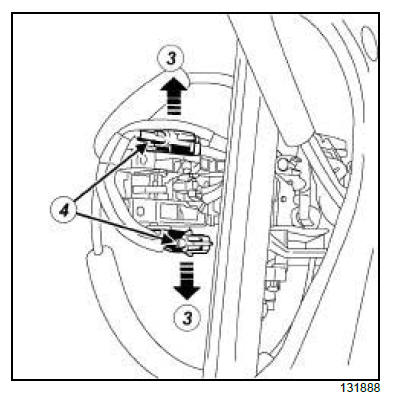

  • Remove the connector at (3) from the exterior handle module.
  • Disconnect the connectors at (4) .

Side opening element mechanisms

  • Remove:

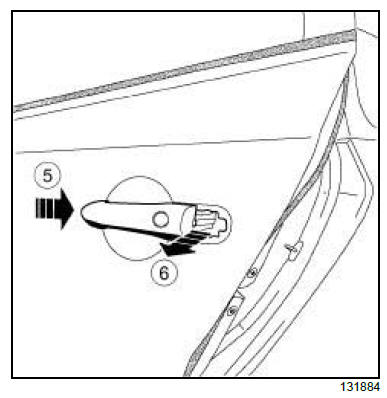

    • the rear side door exterior handle at (5) and (6) .
    • the seal.

Side opening element mechanisms

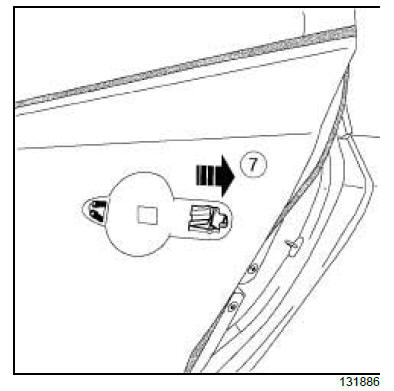

  • Remove the lock module.

Side opening element mechanisms

  • Remove:

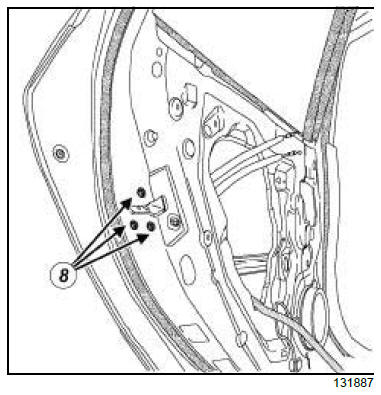

    • the bolts (8) .
    • the lock and the module through the door box section.

REFITTING

I - REFITTING PREPARATION OPERATION

  • Refit:
    • the exterior handle base,
    • the seal .
  • Connect the connectors.

II - REFITTING OPERATION FOR PART CONCERNED

  • Refit the door lock module.
  • Connect the connectors.
  • Refit the bolts (8) .
  • Torque tighten the rear side door lock bolts (6 N.m).
  • Refit the exterior door handle (see 51A, Side opening element mechanisms, Exterior door handle: Removal - Refitting, page 51A-7) (51A, Side opening element mechanisms).

III - FINAL OPERATION.

  • Carry out a function test.
  • Refit:
    • the lock blanking cover,
    • the rear side door sealing film (see Door sealing film: Removal - Refitting) (65A, Door sealing),
    • the rear side door trim (see Rear side door trim: Removal - Refitting) (72A, Side opening element trim).
