Renault Koleos Service Repair Manual: Rear side door striker panel: Removal - Refitting

Renault Koleos Service Repair Manual / Mechanisms and accessories / Side opening element mechanisms / Rear side door striker panel: Removal - Refitting

Side opening element mechanisms

REMOVAL

OPERATION FOR REMOVAL OF PART CONCERNED

Side opening element mechanisms

  • Remove:
    • the bolts,

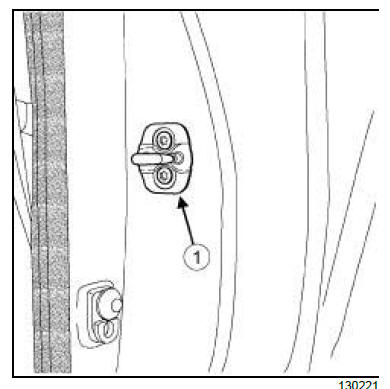

    • the rear side door striker panel (1) .

REFITTING

REFITTING OPERATION FOR PART CONCERNED

Side opening element mechanisms

  • Refit:
    • the rear side door striker panel,
    • the bolts.

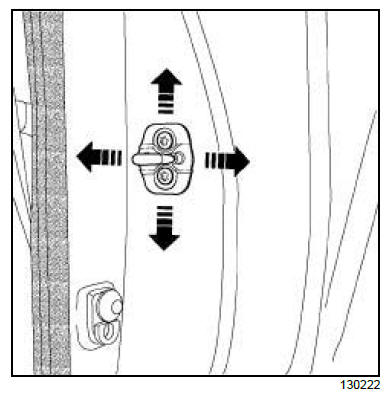

  • Adjust the rear side door striker panel.
  • Check if it is possible to close the door.

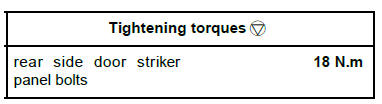

  • Torque tighten the rear side door striker panel bolts (18 N.m).
