Headlight beam adjustment

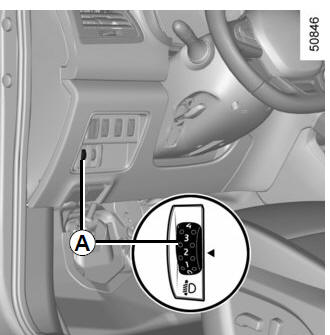

On vehicles fitted with this function, control A allows you to adjust the height of the beams according to the load.

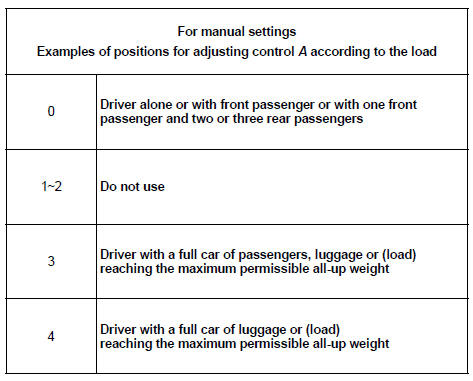

Turn control A downwards to lower the headlights and upwards to raise them.

For vehicles not fitted with a control A, the headlight adjustment is automatic, depending on the vehicle load.

Headlight beam adjustment

When driving on the left in a left-hand drive vehicle (or vice versa), you must adjust your lights temporarily during your stay.

Headlight beam adjustment

Temporary adjustment for vehicles fitted with halogen headlights

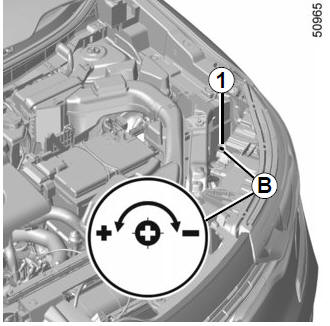

Open the bonnet and identify the marking B next to one of the front headlight projectors.

For each headlight, using a screwdriver, turn the screw 1 by a quarter turn towards the - symbol to lower the beams.

Return to the starting point once your trip is over: turn the screw 1 by a quarter turn towards the + symbol to raise the beams.
