Renault Koleos Owners Manual: Audible and visual signals

Audible and visual signals

Horn

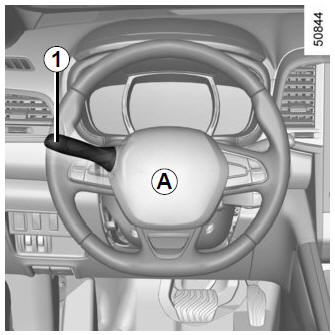

Press the steering wheel boss A to activate the horn.

Headlight flasher

Pull stalk 1 towards you to flash the headlights.

Direction indicators

Move stalk 1 parallel to the steering wheel and in the direction you are going to turn it.

One-touch mode When driving, it is possible that the steering wheel may not be turned sufficiently to return the stalk automatically to its starting position.

In this case, briefly turn stalk 1 to the intermediate position, then release it: the stalk returns to its original point and the indicator light flashes three times.

Audible and visual signals

Hazard warning lights

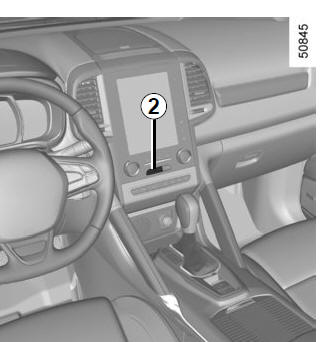

Press switch 2. This switch activates all four direction indicators and the side indicator lights simultaneously.

It must only be used in an emergency to warn drivers of other vehicles that you have had to stop in an area where stopping is prohibited or unexpected or that you are obliged to drive under special conditions.

Depending on the vehicle, the hazard warning lights may come on automatically under heavy deceleration. You can switch them off by pressing switch 2.

    Exterior lighting and signals

    Headlight beam adjustment
