Renault Koleos Service Repair Manual: Lateral acceleration and yaw sensor: Removal - Refitting

Renault Koleos Service Repair Manual / Chassis / Anti-lock braking system / Lateral acceleration and yaw sensor: Removal - Refitting

Anti-lock braking system

REMOVAL

I - REMOVAL PREPARATION OPERATION

Anti-lock braking system

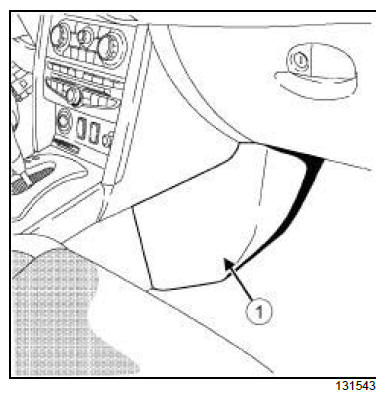

  • Remove the lower cover (1) .

REAR SEATS AIR DUCT

Anti-lock braking system

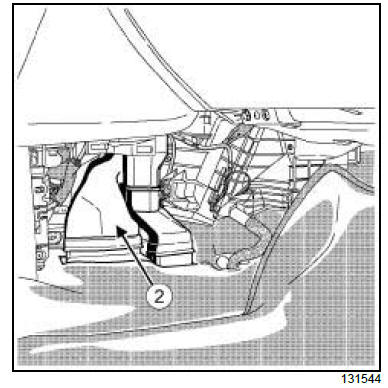

  • Remove the duct (2) from the floor.

II - OPERATION FOR REMOVAL OF PART CONCERNED

WITHOUT ESP

Anti-lock braking system

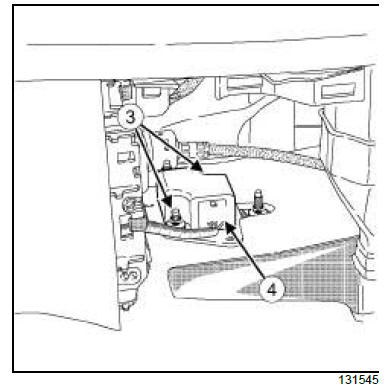

  • Remove nuts (3) .
  • Disconnect the connector (4) .

ELECTRONIC STABILITY PROGRAM 2 or ELECTRONIC STABILITY PROGRAM

Anti-lock braking system

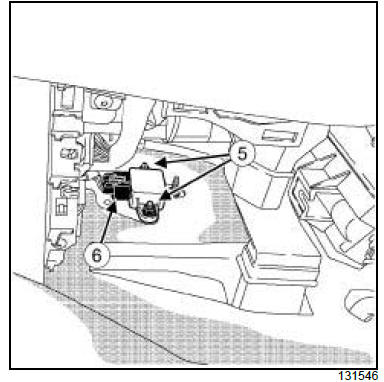

  • Remove nuts (5) .
  • Disconnect the connector (6) .



  • Remove the lateral acceleration and yaw sensor.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit the lateral acceleration and yaw sensor.
  • Connect the lateral acceleration and yaw sensor connector.
  • Refit the lateral acceleration and yaw sensor nuts.

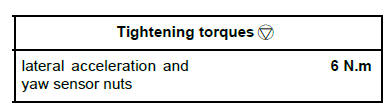

  • Torque tighten the lateral acceleration and yaw sensor nuts (6 N.m).

II - FINAL OPERATION.

REAR SEATS AIR DUCT

  • Refit the floor duct.



  • Refit the lower cover.
