REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Position the vehicle on a two-post lift (see Vehicle: Towing and lifting) (02A, Lifting equipment).
  • Remove the rear wheel (see 35A, Wheels and tyres, Wheel: Removal - Refitting, page 35A-1) .
WARNING To avoid damaging the wheel speed sensor cable:
  • Do not tension the cable,
  • Do not twist the cable,
  • Check that there is no contact with the surrounding components,
  • Do not use tools that may damage the cable.

II - OPERATION FOR REMOVAL OF PART CONCERNED

4X2 TRANSMISSION

Anti-lock braking system

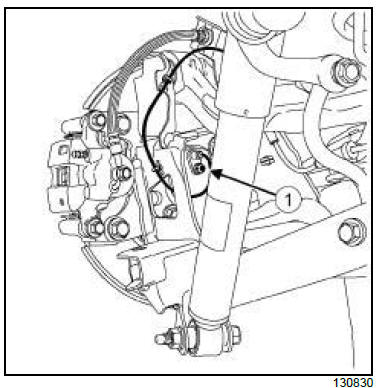

  • Remove the bolt (1) from the rear wheel speed sensor.
  • Unclip the stub axle carrier cable.

4X4 TRANSMISSION

Anti-lock braking system

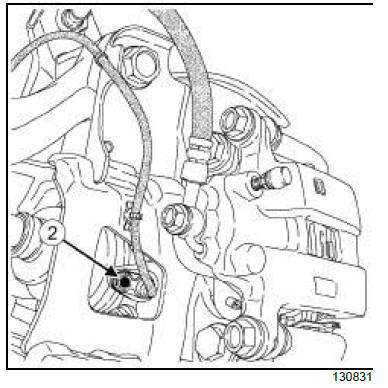

  • Remove the bolt (2) from the rear wheel speed sensor.
  • Unclip the stub axle carrier cable.

Anti-lock braking system

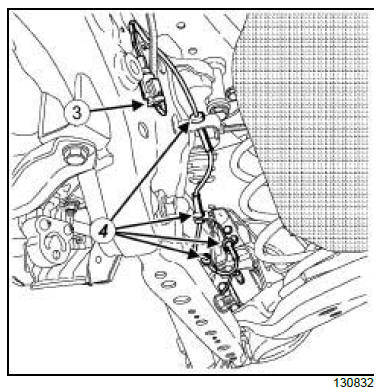

  • Disconnect the connector (3) from the rear wheel speed sensor.
  • Unclip the cable from the wheel speed sensor at (4) .
  • Remove the wheel speed sensor.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Connect the speed sensor connector.
  • Clip on the cable of the rear wheel speed sensor at (4) .
  • Refit the rear wheel speed sensor bolt.

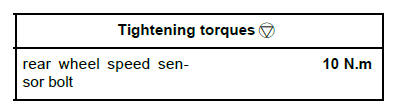

  • Torque tighten the rear wheel speed sensor bolt (10 N.m).

II - FINAL OPERATION.

  • Refit the rear wheel (see 35A, Wheels and tyres, Wheel: Removal - Refitting, page 35A-1) .
