Renault Koleos Service Repair Manual: Bulkhead seal: Removal - Refitting

Renault Koleos Service Repair Manual / Chassis / Steering assembly / Bulkhead seal: Removal - Refitting

LEFT-HAND DRIVE

Steering assembly

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Position the vehicle on a two-post lift (see Vehicle: Towing and lifting) (02A, Lifting equipment).

Steering assembly

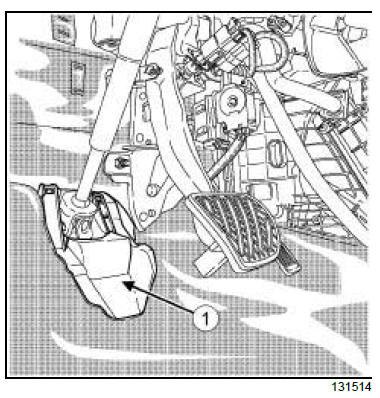

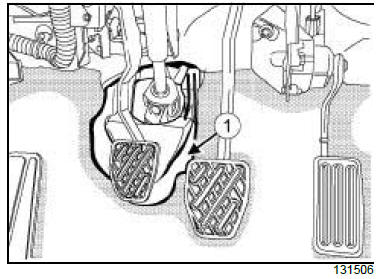

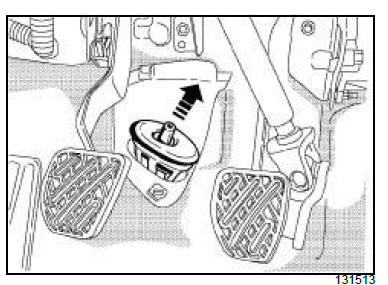

  • Remove the cover (1) from the steering column.

Steering assembly

  • Remove the universal joint cover (2) (do not keep).
  • Set the wheels straight ahead.

Steering assembly

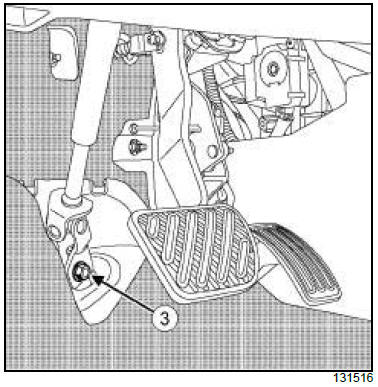

  • Remove:

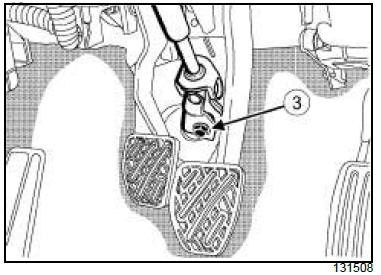

    • the universal joint bolt (3) (do not keep),
    • the universal joint nut (do not keep),
    • the universal joint from the steering box.

II - OPERATION FOR REMOVAL OF PART CONCERNED

Steering assembly

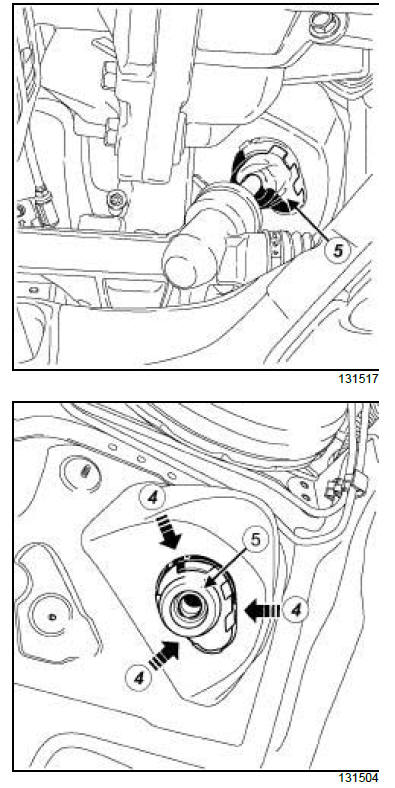

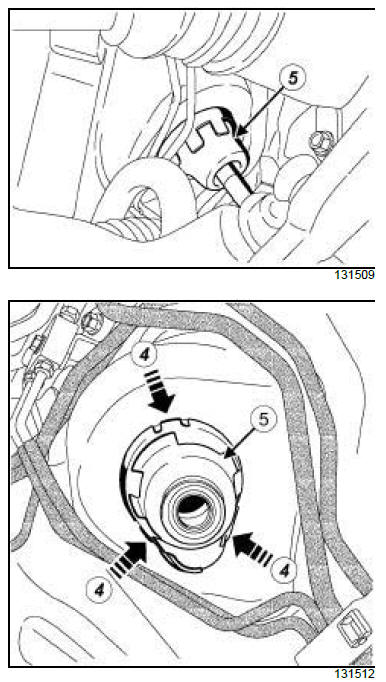

  • Unclip the bulkhead seal (5) at (4) using a flat-blade screwdriver.

Steering assembly

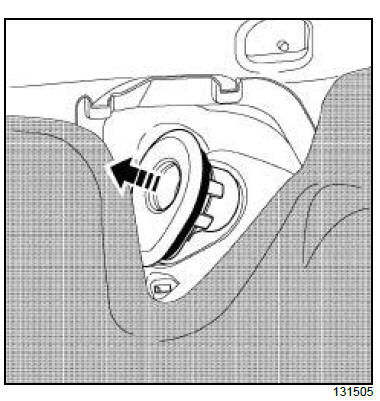

  • Remove the bulkhead seal.

REFITTING

I - REFITTING PREPARATION OPERATION

  • Always refit the universal joint bolt and cam nut.

II - REFITTING OPERATION FOR PART CONCERNED

  • Refit the bulkhead seal.

III - FINAL OPERATION.

Steering assembly

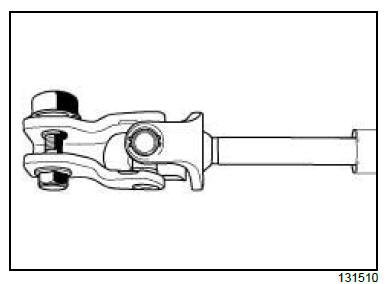

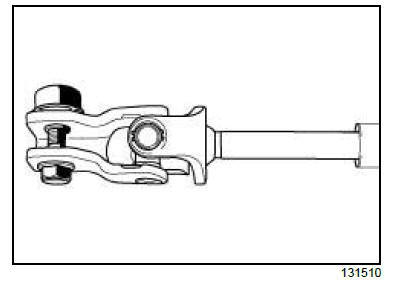

  • Observe the direction of fitting for the universal joint cam nut and bolt.

Steering assembly

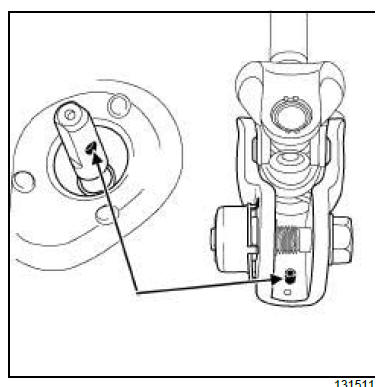

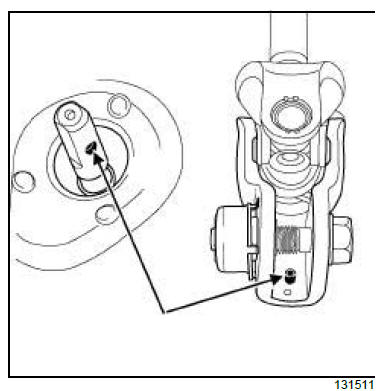

  • Check that the universal joint is in the correct position.
  • Refit:
    • the universal joint,
    • the new universal joint bolt,
    • the new universal joint nut.

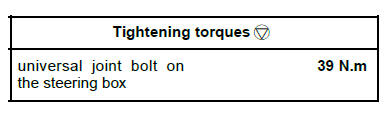

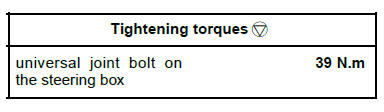

  • Tighten to torque the universal joint bolt on the steering box (39 N.m).
  • Refit the steering column cover.

RIGHT-HAND DRIVE

Steering assembly

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Position the vehicle on a two-post lift (see Vehicle: Towing and lifting) (02A, Lifting equipment).

Steering assembly

  • Remove the cover (1) from the steering column.

Steering assembly

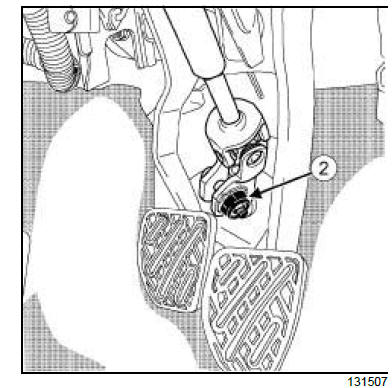

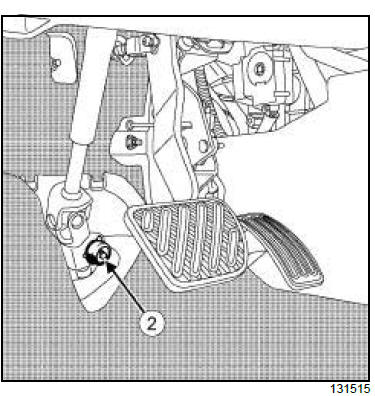

  • Remove the cover (2) from the universal joint (do not keep).

Steering assembly

  • Remove:
    • the universal joint bolt (3) (do not keep).
    • the universal joint nut (do not keep),
    • the universal joint from the steering box.

II - OPERATION FOR REMOVAL OF PART CONCERNED

Steering assembly

  • Unclip the bulkhead seal (5) at (4) using a flat-blade screwdriver.

Steering assembly

  • Remove the bulkhead seal.

REFITTING

I - REFITTING PREPARATION OPERATION

  • Always replace the universal joint bolt and cam nut.

II - REFITTING OPERATION FOR PART CONCERNED

  • Refit the bulkhead seal.

III - FINAL OPERATION.

Steering assembly

  • Observe the direction of fitting for the universal joint cam nut and bolt.

Steering assembly

  • Check that the universal joint is in the correct position.
  • Refit:
    • the universal joint,
    • the new universal joint bolt,
    • the new universal joint nut.
  • Tighten to torque the universal joint bolt on the steering box (39 N.m).
  • Refit the steering column cover.
