Steering wheel, power-assisted steering

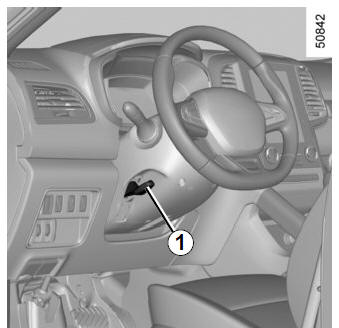

Adjusting the steering wheel height and depth

Lower the lever 1 and position the steering wheel in the required position.

Then, raise the lever fully, beyond the point of resistance to lock the steering wheel.

Make sure that the steering wheel is correctly locked.

For safety reasons, only adjust the steering wheel when the vehicle is stationary.

Power-assisted steering

Variable power-assisted steering The variable power assisted steering system is equipped with an electronic control system which alters the level of assistance to suit the vehicle speed.

Steering is made easier during parking manoeuvres (for added comfort) while the force needed to steer increases progressively as the speed rises (for enhanced safety at high speeds).

Never leave the steering wheel at full lock while stationary.



With the engine switched off, or if there is a system fault, it is still possible to turn the steering wheel. The force required will be greater.



Do not switch off the engine when driving downhill and, as a general rule, when driving (the power-assisted steering and brake cannot operate normally).

Steering wheel, power-assisted steering

Steering wheel heating (depending on the vehicle)

This function heats the steering wheel in areas 2.

Operating principle

When the temperature is reached, the function regulates the temperature of the heated areas for approximately 30 minutes and then switches off automatically.

Activating the function

With the ignition on, press the switch 3 , the warning light integrated in the switch lights up.

Deactivating the function

  • Automatic: The function switches off automatically after the regulation phase of approximately 30 minutes. The warning light integrated in the switch 3 remains on.

Note: If the function has switched off automatically, press the switch 3 twice to reactivate it.

If switch 3 is not pressed again, the function will be reactivated the next time the ignition is switched on.

  • Manually: To deactivate the function during the regulation phase, press the switch 3.

    The indicator light in the switch 3 goes out.
