Renault Koleos Service Repair Manual: Neutral switch: Removal - Refitting

Renault Koleos Service Repair Manual / Transmission / Manual gearbox / Neutral switch: Removal - Refitting

2TR, and 6-SPEED MANUAL GEARBOX

Manual gearbox

IMPORTANT To avoid all risk of damage to the systems, apply the safety and cleanliness instructions and operation recommendations before carrying out any repair.

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Remove:
    • the battery
    • the battery tray.

Manual gearbox

  • Remove:

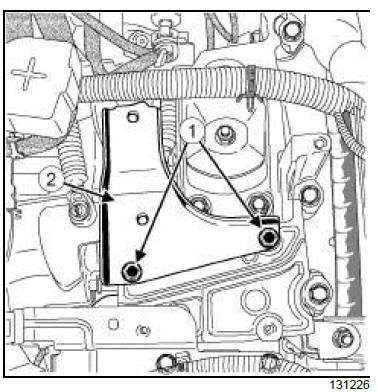

    • the bolts (1) from the battery tray mounting.
    • the battery tray mounting (2) .

II - OPERATION FOR REMOVAL OF PART CONCERNED

Manual gearbox

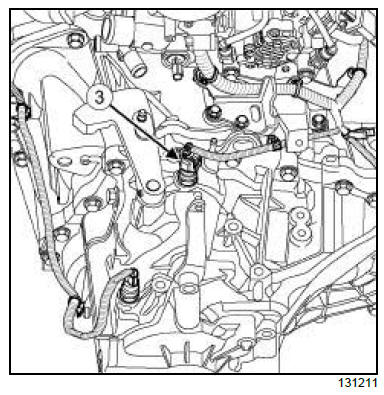

  • Disconnect the connector (3) for the neutral switch.
  • Remove the neutral switch.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit the neutral switch (black) coated with RESIN ADHESIVE .

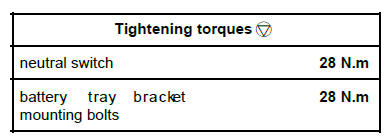

  • Torque tighten the neutral switch (28 N.m).
  • Connect the connector for the neutral switch.

II - FINAL OPERATION.

  • Refit:
    • the battery tray bracket,
    • the battery tray bracket bolts.
  • Tighten to torque the battery tray bracket mounting bolts (28 N.m).
  • Refit:
    • the battery tray
    • the battery .

M9R, and 6-SPEED MANUAL GEARBOX

Manual gearbox

IMPORTANT To avoid all risk of damage to the systems, apply the safety and cleanliness instructions and operation recommendations before carrying out any repair.

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Remove:
    • the air inlet sleeve
    • the battery
    • the battery tray

Manual gearbox

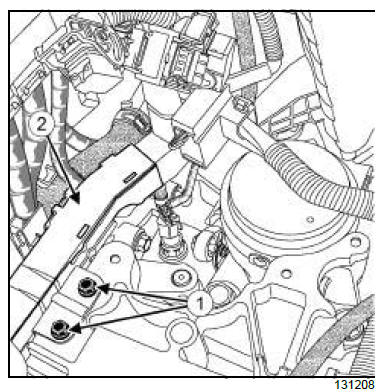

  • Remove the bolts (1) from the engine wiring harness channel.
  • Remove the wiring harness channel (2) .

II - OPERATION FOR REMOVAL OF PART CONCERNED

Manual gearbox

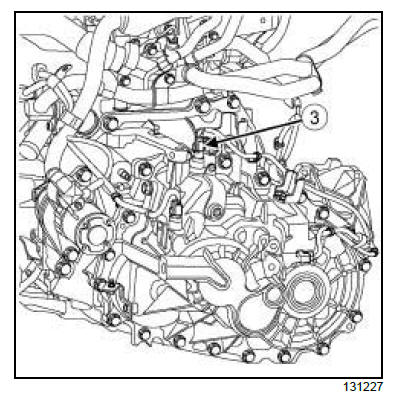

  • Disconnect the connector (3) for the neutral switch.
  • Remove the neutral switch.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit the neutral switch (black) smeared with RESIN ADHESIVE.

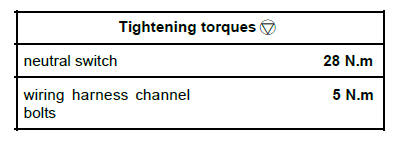

  • Torque tighten the neutral switch (28 N.m).
  • Connect the connector for the neutral switch.

II - FINAL OPERATION.

  • Refit:
    • the engine wiring harness channel,
    • the engine wiring harness channel bolts.
  • Torque tighten the wiring harness channel bolts (5 N.m).
  • Refit:
    • the battery tray
    • the battery
    • the air inlet sleeve.
    Reverse gear switch: Removal - Refitting

    First gear switch: Removal - Refitting
