Renault Koleos Service Repair Manual: First gear switch: Removal - Refitting

Renault Koleos Service Repair Manual / Transmission / Manual gearbox / First gear switch: Removal - Refitting

4X4 TRANSMISSION, and 6-SPEED MANUAL GEARBOX

Manual gearbox

IMPORTANT To avoid all risk of damage to the systems, apply the safety and cleanliness instructions and operation recommendations before carrying out any repair.

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Position the vehicle on a two-post lift and tie the vehicle down.
IMPORTANT To prevent the vehicle from falling, lash it to the vehicle lift using a strap.
  • Disconnect the battery.
  • Remove:
    • the front left-hand wheel
    • the front left-hand splash guard .

II - OPERATION FOR REMOVAL OF PART CONCERNED

Manual gearbox

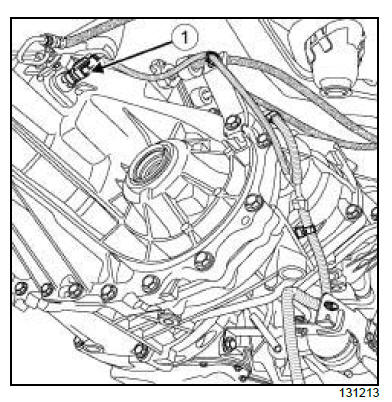

  • Disconnect the connector (1) for the first gear switch.
  • Remove the first gear switch.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit the first gear switch coated with RESIN ADHESIVE.
  • Torque tighten the first gear switch (28 N.m).
  • Connect the connector for the first gear switch.

II - FINAL OPERATION.

  • Refit:
    • the front left-hand splash guard
    • the front left-hand wheel
  • Connect the battery.
