Renault Koleos Service Repair Manual: Inlet duct: Removal - Refitting

2TR

Fuel mixture

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Position the vehicle on a two-post lift .
  • Remove the engine cover.

II - OPERATION FOR REMOVAL OF PART CONCERNED

Fuel mixture

  • Remove:

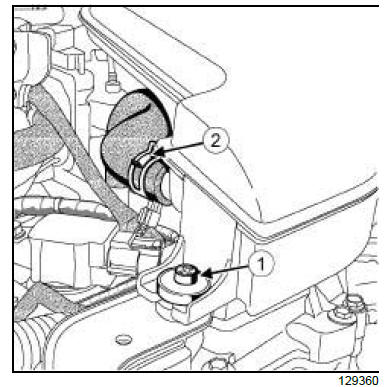

    • the bolt (1) from the air resonator,
    • the oil vapour rebreathing pipe clip (2) .
  • Disconnect the oil vapour rebreathing pipe.

Fuel mixture

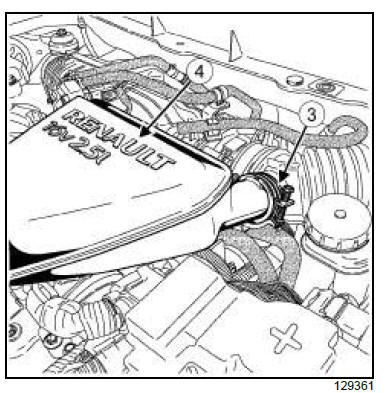

  • Loosen the air resonator clip (3) on the air inlet duct.
  • Remove the air resonator (4) on the rocker cover.

Fuel mixture

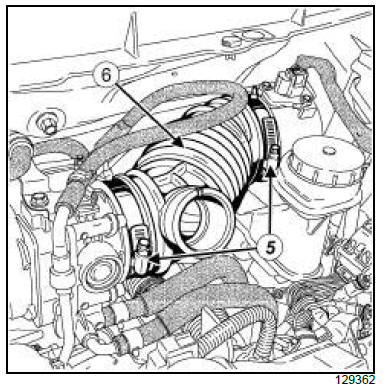

  • Loosen the clips (5) of the air inlet duct on the air filter unit and on the throttle valve.
  • Remove the air inlet duct (6) .

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the air inlet duct (6) ,
    • the air inlet duct clips (5) .

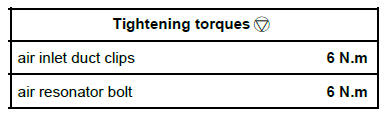

  • Torque tighten the air inlet duct clips (6 N.m) on the air filter unit and on the throttle valve.
  • Refit the air resonator on the rocker cover.
  • Tighten the air resonator clip (3) on the air inlet duct.
  • Connect the oil vapour rebreathing pipe.
  • Refit:
    • the oil vapour rebreathing pipe clip (2) ,
    • the air resonator bolt (1) .
  • Torque tighten the air resonator bolt (6 N.m).

II - FINAL OPERATION.

  • Refit the engine cover.
