FRONT AND REAR PROXIMITY RADAR

I - LIST OF COMPONENTS

  1. Parking distance control switch
  2. Front parking distance control buzzer
  3. Rear parking distance control buzzer
  4. Front proximity sensors
  5. Rear proximity sensors
  6. Parking distance control computer

II - LOCATION OF COMPONENTS

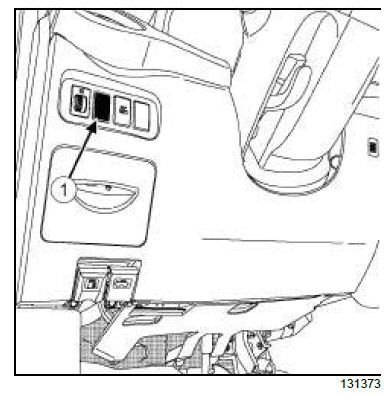

1 - Parking distance control switch

Electrical equipment

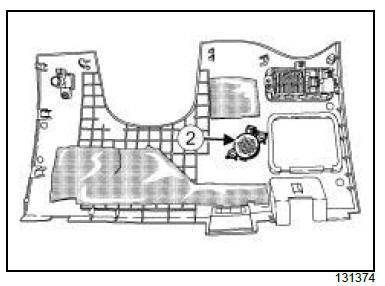

2 - Front parking distance control buzzers

Electrical equipment

The front parking distance control buzzer (2) is located at the rear of the dashboard lower cover on the driver's side.

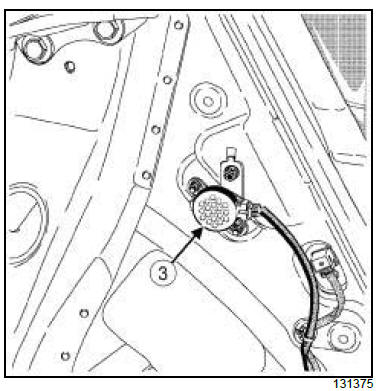

3 - Rear parking distance control buzzer

Electrical equipment

The rear parking distance control buzzer (3) is located in the left-hand side of the C-pillar lower trim.
