Renault Koleos Service Repair Manual: Front electric window switches on driver's door: Removal - Refitting

Renault Koleos Service Repair Manual / Electrical equipment / Electric windows - sunroof / Front electric window switches on driver's door: Removal - Refitting

Electrical equipment

REMOVAL

OPERATION FOR REMOVAL OF PART CONCERNED

Electrical equipment

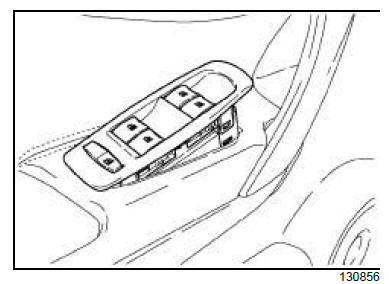

  • Unclip the electric window switch plate using the tool (Car. 1363).

Electrical equipment

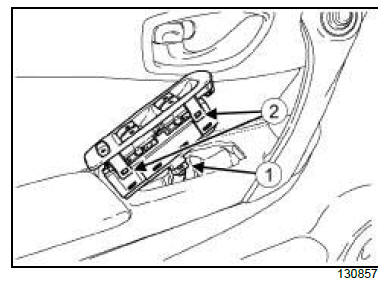

  • Disconnect the electric window switch connector (1) .
  • Unclip clips (2) .
  • Remove the electric window switch from the plate.

REFITTING

REFITTING OPERATION FOR PART CONCERNED

  • Refit the electric window switch on the plate.
  • Connect the window winder switch connector.
  • Refit the electric window switch plate by inserting it from the rear.
