The RENAULT card is used for:
Battery life Make sure that the correct battery type is being used, and that the battery is in good condition and inserted correctly. Its service life is approximately two years: replace it when the message "Keycard battery low" appears on the instrument panel. RENAULT card operating range This varies according to the surroundings. It is important to make sure when handling the RENAULT card that you do not lock or unlock the doors by inadvertently pressing the buttons.

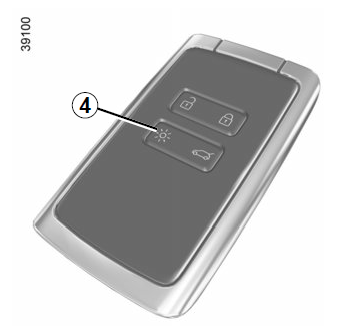

Distance lighting function Depending on the vehicle, pressing button 4 switches on the dipped beam headlights and the interior lighting for approximately 20 seconds. This can be used, for example, to identify the vehicle from a distance when parked in a car park. Note: Pressing button 4 again switches off the lighting. Remote engine start-up Refer to the information on the "Starting, stopping the engine: vehicle with RENAULT card".
|
Renault Koleos Service Repair Manual > General information: Brake circuit: Operating
diagram
ABS hydraulic unit Front brake disc Master cylinder Brake servo Underbody connection Rear brake disc Rigid brake pipes Brake hoses IMPORTANT This is a diagram of the general principle, do not use it as a reference for take-off points or circuit allocation. When replacing components in a vehicle's b ...
