2TR

Petrol injection

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Position the vehicle on a two-post lift .
  • Remove:
    • the engine cover,
    • the air resonator on the rocker cover.

II - OPERATION FOR REMOVAL OF PART CONCERNED

Petrol injection

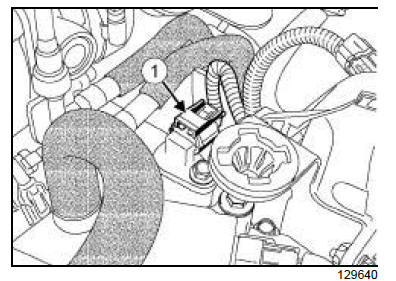

  • Disconnect the connector (1) from the camshaft position sensor.

Petrol injection

Note: Handle the sensor carefully to avoid dropping or hitting it.

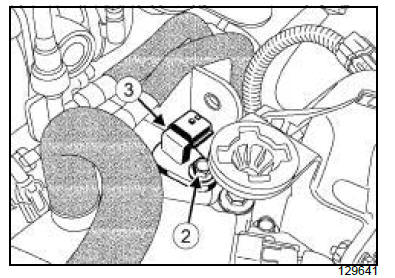

  • Remove:
    • the camshaft position sensor bolt (2) ,
    • the camshaft position sensor (3) .

REFITTING

I - REFITTING PREPARATION OPERATION

  • Always replace the O-ring on the position sensor of the camshaft.

II - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the camshaft position sensor,
    • the camshaft position sensor bolt.

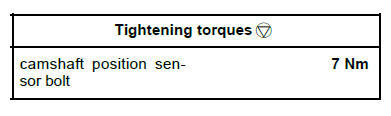

  • Torque tighten the camshaft position sensor bolt (7 Nm).
  • Connect the connector of the camshaft position sensor.

III - FINAL OPERATION

  • Refit:
    • The air resonator on the rocker cover
    • the engine cover.
