Renault Koleos Service Repair Manual: Crankshaft position sensor: Removal - Refitting

Renault Koleos Service Repair Manual / Engine and peripherals / Petrol injection / Crankshaft position sensor: Removal - Refitting

2TR

Petrol injection

Note: Take care not to burn yourself. The exhaust manifold may be hot.

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Position the vehicle on a two-post lift.

II - OPERATION FOR REMOVAL OF PART CONCERNED

Petrol injection

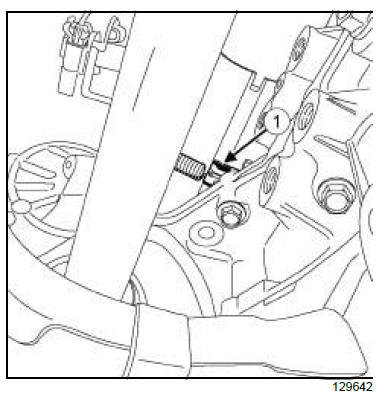

  • Disconnect the crankshaft position sensor connector (1) .

Petrol injection

Note: Handle the sensor carefully to avoid dropping or hitting it.

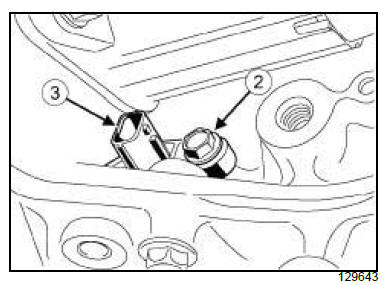

  • Remove:
    • the crankshaft position sensor bolt (2) ,
    • the crankshaft position sensor (3) .

REFITTING

I - REFITTING PREPARATION OPERATION

  • Always replace the O-ring on the position sensor of the crankshaft.

II - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the crankshaft position sensor,
    • the crankshaft position sensor bolt.

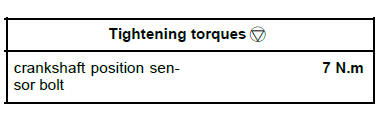

  • Torque tighten the crankshaft position sensor bolt (7 N.m).
  • Connect the crankshaft position sensor connector.
