Renault Koleos Service Repair Manual: Rear screen wiper motor: Removal - Refitting

REMOVAL

I - REMOVAL PREPARATION OPERATION

• Switch on the ignition.

• Turn the wiper switch stalk from (0) to (1), and then from (1) to (0).
• Switch off the ignition.
• Mark the position of the rear screen wiper arm.
• Remove:
  • the rear screen wiper arm (see 85A, Wiping - Washing, Rear screen wiper arm: Removal - Refitting, page 85A-13) ,
  • the lower tailgate trim (see Tailgate trim: Removal - Refitting) (73A, Non-side opening elements trim).

II - OPERATION FOR REMOVAL OF PART CONCERNED

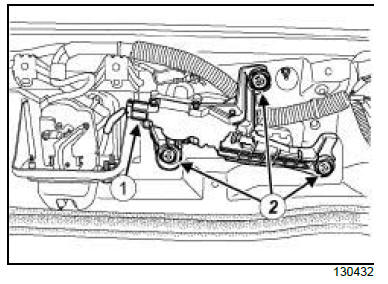

• Disconnect the rear screen wiper motor connector (1) .
• Remove:
  • the bolts (2) from the rear screen wiper motor,
  • the rear screen wiper motor.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

• Refit:
  • the rear screen wiper motor,
  • the rear screen wiper motor bolts.
• Connect the rear screen wiper motor connector.

II - FINAL OPERATION.

• Switch on the ignition.

• Turn the wiper switch stalk from (0) to (1), and then from (1) to (0).
• Switch off the ignition.
• Refit:
  • the lower tailgate trim (see Tailgate trim: Removal - Refitting) (73A, Non-side opening elements trim),
  • the rear screen wiper arm (see 85A, Wiping - Washing, Rear screen wiper arm: Removal - Refitting, page 85A-13) .
