Renault Koleos Service Repair Manual: Rear screen wiper blade: Removal - Refitting

Renault Koleos Service Repair Manual / Electrical equipment / Wiping - washing / Rear screen wiper blade: Removal - Refitting

REMOVAL

OPERATION FOR REMOVAL OF PART CONCERNED

Electrical equipment

  • Lift the rear screen wiper arm.
  • Turn the rear screen wiper arm.

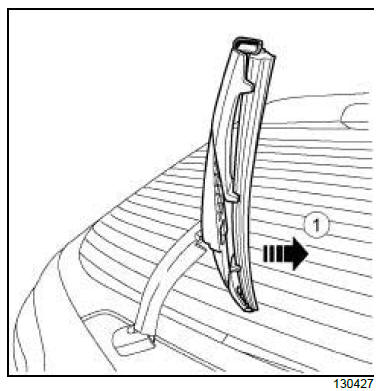

  • Remove the rear screen wiper blade by pulling it in the direction of the arrow (1) .

REFITTING

REFITTING OPERATION FOR PART CONCERNED

  • Refit the rear screen wiper blade to the rear screen wiper arm.
  • Lower the rear screen wiper arm.

Rear screen wiper arm: Removal - Refitting

Electrical equipment

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Switch on the ignition.
WARNING To ensure that the wiper arms can travel smoothly, the wiper motor must be initialised.
  • Turn the wiper stalk from (0) to (1), and then from (1) to (0).
  • Switch off the ignition.
  • Mark the position of the rear screen wiper arm.

II - OPERATION FOR REMOVAL OF PART CONCERNED

Electrical equipment

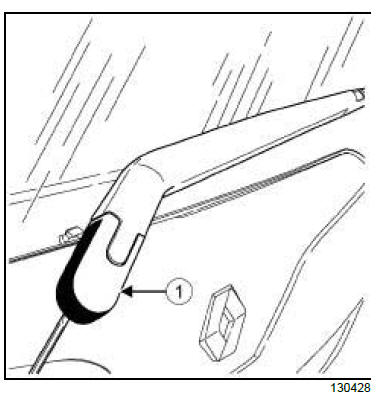

  • Open the rear screen wiper arm nut cover (1) .

Electrical equipment

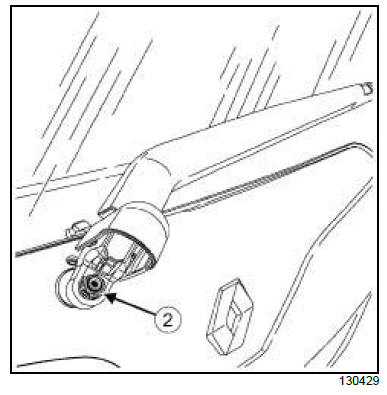

  • Remove the nut (2) from the rear screen wiper arm.

Electrical equipment

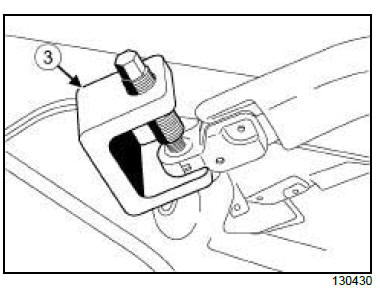

  • Remove the rear screen wiper arm using the (Ele. 1841) (3) .

REFITTING

I - REFITTING PREPARATION OPERATION

Electrical equipment

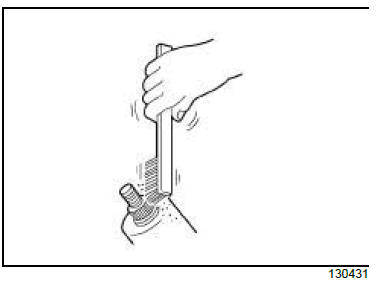

  • Clean the rear screen wiper arm mounting to prevent the nut from coming loose.

II - REFITTING OPERATION FOR PART CONCERNED

  • Switch on the ignition.
WARNING To ensure that the wiper arms can travel smoothly, the wiper motor must be initialised.
  • Turn the wiper stalk from (0) to (1), and then from (1) to (0).
  • Switch off the ignition.
  • Refit:
    • the rear screen wiper arm in the position marked before the removal operation,
    • the rear screen wiper arm nut.

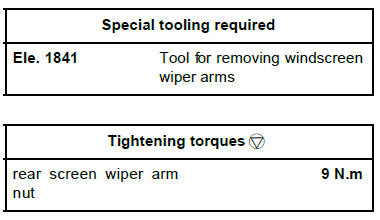

  • Torque tighten the rear screen wiper arm nut (9 N.m).
  • Close the rear screen wiper arm nut cover.
    Windscreen wiper mechanism: Removal - Refitting

    Rear screen wiper motor: Removal - Refitting
