FRONT SEAT WITH HEATING

REMOVAL

I - REMOVAL PREPARATION OPERATION

Note: It is not necessary to remove the front seat completely.
  • Move the seat as far forward as possible.

Electrical equipment

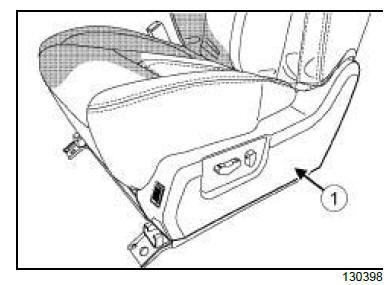

  • Remove the front seat lower cover (1) on the side concerned (see Front seat base trim: Removal - Refitting) (77A, Front seat trim).

II - OPERATION FOR REMOVAL OF PART CONCERNED

Electrical equipment

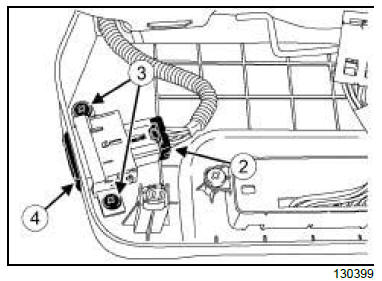

  • Disconnect the connector (2) from the heated seat cover switch.
  • Remove:
    • the heated seat cover switch bolts (3) ,
    • the heated seat cover switch (4) .

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the heated seat cover switch,
    • the heated seat cover switch bolts.
  • Connect the heated seat cover switch connector.

II - FINAL OPERATION.

  • Refit the front seat lower cover on the side concerned (see Front seat base trim: Removal - Refitting) (77A, Front seat trim).
