Renault Koleos Service Repair Manual: Immobiliser system: List and location of components

Renault Koleos Service Repair Manual / Electrical equipment / Engine immobiliser / Immobiliser system: List and location of components

I - LIST OF COMPONENTS

  1. UCH
  2. Front starting aerial
  3. Central starting aerial
  4. Rear starting aerial
  5. Start button
  6. Card reader
  7. Electric steering column lock
  8. Card

II - LOCATION OF COMPONENTS

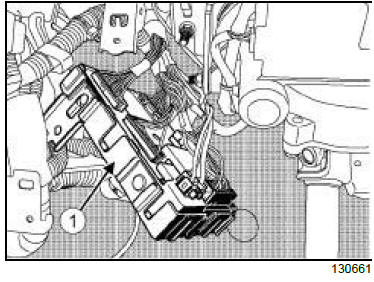

1 - UCH

Electrical equipment

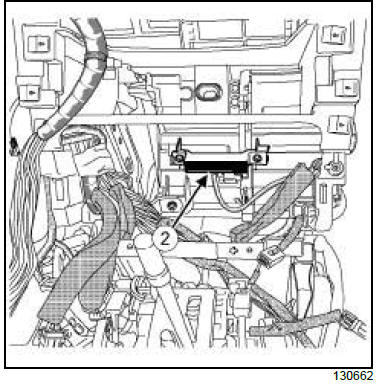

2 - Front starting aerial

Electrical equipment

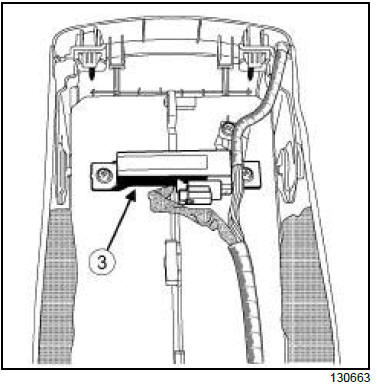

3 - Central starting aerial

Electrical equipment

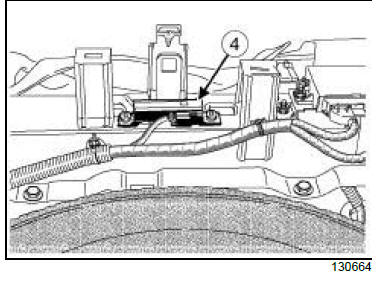

4 - Rear starting aerial

Electrical equipment

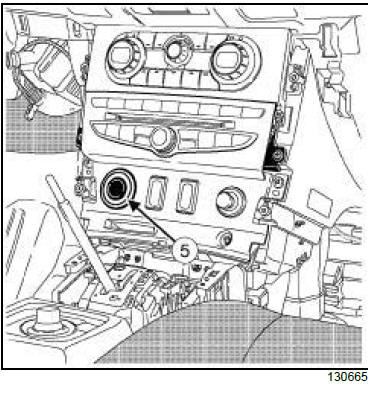

5 - Start button

Electrical equipment

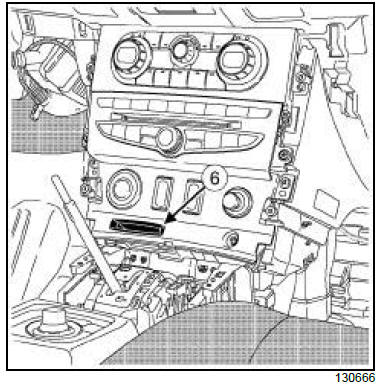

6 - Card reader

Electrical equipment

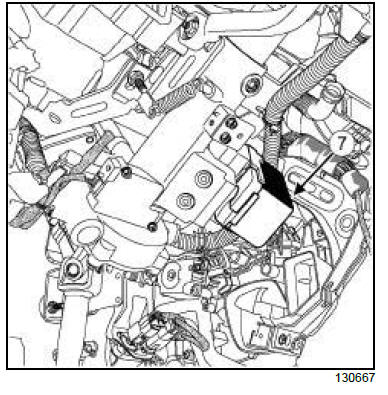

7 - Electric steering column lock

Electrical equipment

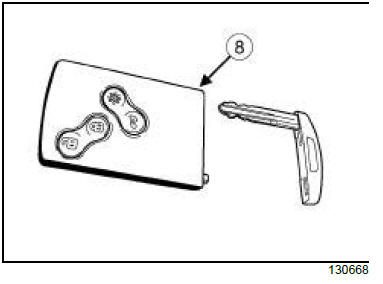

8 - Card

Electrical equipment

    Engine immobiliser

    Start button: Removal - Refitting
