REMOVAL

OPERATION FOR REMOVAL OF PART CONCERNED

Electrical equipment

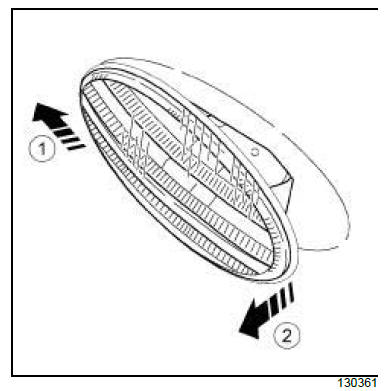

  • Push the side indicator towards the front of the vehicle (1) .
  • Pull the side indicator in the direction of (2) .

Electrical equipment

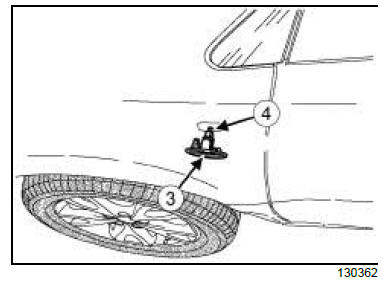

  • Remove:
    • the side indicator cover (3) from the bulb holder (4) by turning it a quarter turn anticlockwise,
    • the side indicator bulb from the bulb holder.
Note: Support the side indicator wiring using adhesive tape, so that the side indicator does not fall into the front wing.

REFITTING

REFITTING OPERATION FOR PART CONCERNED

  • Replace the bulb only with an approved W5W bulb.
  • Refit:
    • the side indicator bulb on the bulb holder,
    • the side indicator cover on the bulb holder by turning it a quarter turn clockwise,
    • the side indicator on the front wing.
