Renault Koleos Service Repair Manual: Headlight: Adjustment

WITHOUT DISCHARGE LAMPS

Electrical equipment

ADJUSTMENT

I - PREPARATION OPERATION FOR CHECK

  • Position the vehicle on a flat, horizontal work surface, without applying the parking brake.
  • Check and inflate the tyres (see Tyre pressure: Identification) (35A, Wheels and tyres).
  • Open the bonnet.
  • Check:
    • that the luggage compartment is empty,
    • that the headlights are clean.
Note: Do not get into the vehicle during the operation.
  • Position the headlight beam remote adjustment control to " 0 ".
  • Switch on the dipped headlights.

II - CHECKING OPERATION

  • Place a tool headlight adjustment and checking tool set to -1.2% in front of the vehicle (see Equipment instructions).
  • Check the headlight beam adjustment using the tool headlight adjustment and checking tool (see Equipment instructions).

III - ADJUSTMENT OPERATION

1 - Vertical adjustment

Electrical equipment

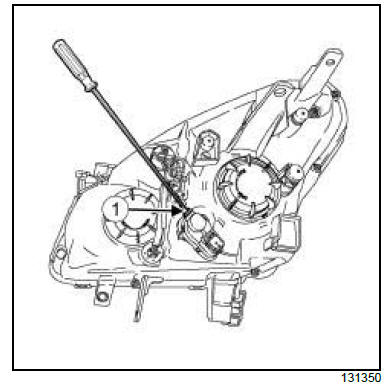

  • Use the headlight adjustment and checking tool to vertically adjust the headlight by turning the bolt (1) .

2 - Horizontal adjustment

Electrical equipment

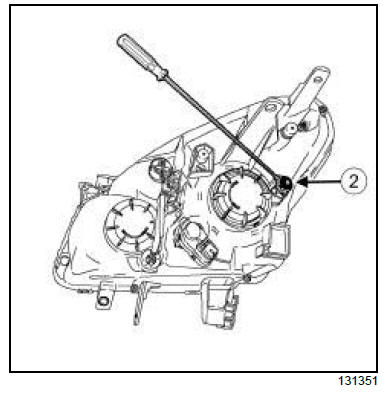

  • Use the tool headlight adjustment and checking tool to horizontally adjust the headlight by turning the bolt (2) .

IV - FINAL OPERATION.

  • Close the bonnet.

DISCHARGE LAMPS

Electrical equipment

ADJUSTMENT

I - PREPARATION OPERATION FOR CHECK

  • Put the vehicle on a flat, horizontal work surface, without applying the parking brake.
  • Check and inflate the tyres (see Tyre pressure: Identification) (35A, Wheels and tyres).
  • Open the bonnet.
  • Check:
    • that the luggage compartment is empty,
    • that the headlights are clean.
Note: Do not get into the vehicle during the operation.
  • Switch on the dipped headlights.

II - CHECKING OPERATION

  • Place a tool headlight adjustment and checking tool set to -1.2% in front of the vehicle (see Equipment instructions).
  • Check the headlight beam adjustment using the tool headlight adjustment and checking tool (see Equipment instructions).

III - ADJUSTMENT OPERATION

1 - Vertical adjustment

Electrical equipment

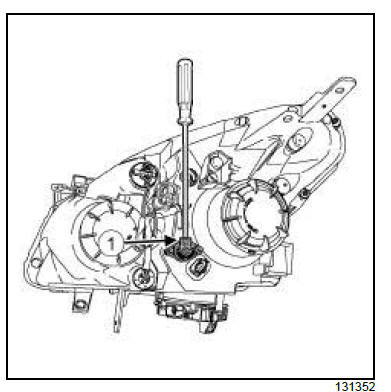

  • Use the headlight adjustment and checking tool to vertically adjust the headlight by turning the bolt (1) .

2 - Horizontal adjustment

Electrical equipment

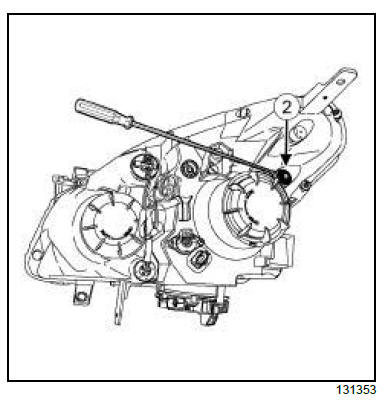

  • Use the tool headlight adjustment and checking tool to horizontally adjust the headlight by turning the bolt (2) .

IV - FINAL OPERATION.

  • Close the bonnet.
