REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Position the vehicle on a two-post lift (see Vehicle: Towing and lifting) (02A, Lifting equipment).
  • Remove the front bumper (see Front bumper: Removal - Refitting) (55A, Exterior protection).

Electrical equipment

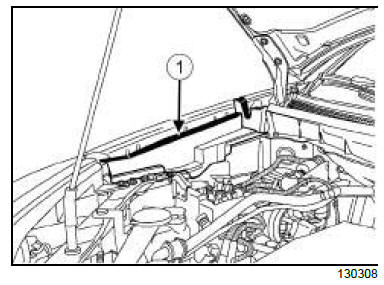

  • Remove the trim (1) .

DISCHARGE LAMPS

IMPORTANT To prevent eye injuries:
  • do not look at a discharge bulb when lit (voltage when lit 20000 V),
  • do not light a bulb which has not been fitted into its headlight.



IMPORTANT To prevent burns, wait until the " computer - power unit " assembly has cooled before removing them.
  • Disconnect the battery (see 80A, Battery, Battery: Removal - Refitting, page 80A-3) .

II - OPERATION FOR REMOVAL OF PART CONCERNED

Electrical equipment

  • Remove:

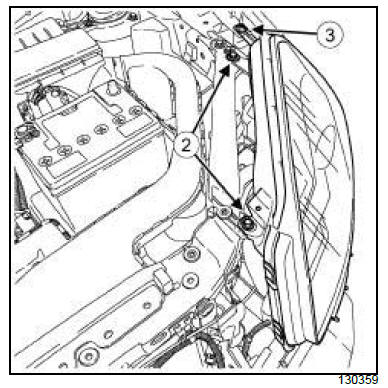

    • the headlight upper bolts (2) ,
    • the clip (3) .

Electrical equipment

  • Remove:

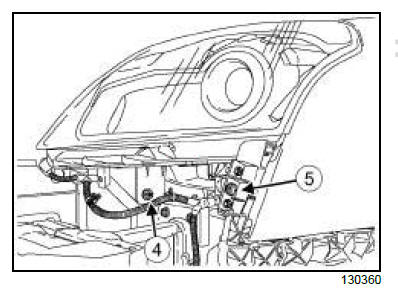

    • the headlight lower bolt (4) ,
    • the headlight lower nut (5) .
  • Disconnect the headlight connectors.
  • Remove the headlight.

REFITTING

I - REFITTING PREPARATION OPERATION

WARNING To avoid any humidity getting into the headlight, check there are no cracks on the headlight before carrying out the repair.

Replace all cracked headlights.

II - REFITTING OPERATION FOR PART CONCERNED

  • Connect the headlight connectors.
  • Refit:
    • the headlight,
    • the clip,
    • the headlight lower nut,
    • the headlight lower bolt,
    • the headlight upper bolts.

III - FINAL OPERATION

  • Refit the front bumper (see Front bumper: Removal - Refitting) (MR 416, 55A, Exterior protection).

DISCHARGE LAMPS

  • Connect the battery (see 80A, Battery, Battery: Removal - Refitting, page 80A-3) .



  • Adjust the headlight beam (see 80B, Headlights, Headlight: Adjustment, page 80B-3) .
