FRONT SEAT TYPE 04

REMOVAL

I - REMOVAL PREPARATION OPERATION

Note: Move the seat as far forward as possible to remove the front seat trim.

Front seat frames and runners

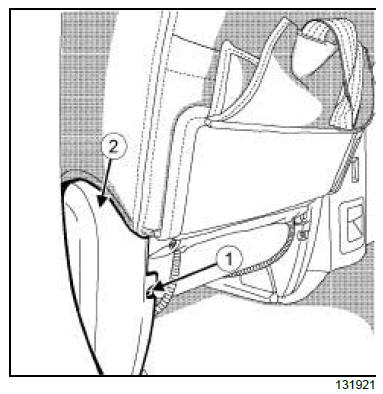

  • Remove the front seat trim bolt (1) .
  • Unclip the front seat trim (2) .
  • Disconnect the connectors.

II - OPERATION FOR REMOVAL OF PART CONCERNED

Front seat frames and runners

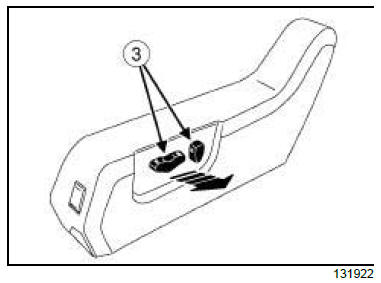

  • Remove the front seat control switch (3) .

Front seat frames and runners

  • Remove:

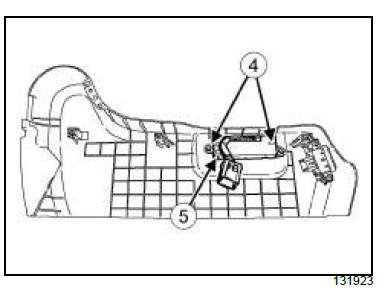

    • the bolts (4) ,
    • the front seat control keypad (5) .

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the front seat control keypad,
    • the bolts,
    • the front seat control switch.

II - FINAL OPERATION.

  • Connect the connectors.
  • Clip on the front seat trim.
  • Refit the front seat trim bolt.
