Renault Koleos Service Repair Manual: Rear side door trim: Removal - Refitting

Side opening element trim

REMOVAL

OPERATION FOR REMOVAL OF PART CONCERNED

Side opening element trim

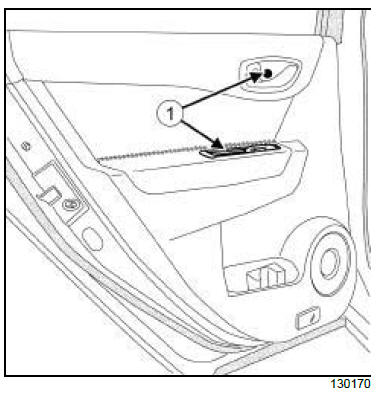

  • Remove:
    • the covers,
    • the bolts (1) .

Side opening element trim

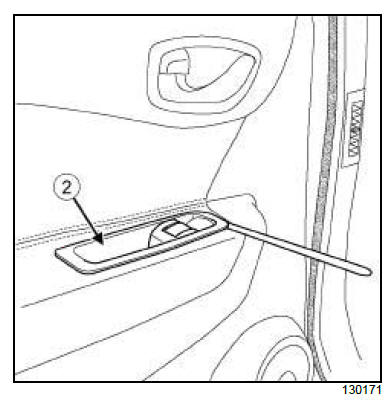

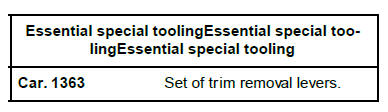

  • Remove the plate (2) using the (Car. 1363)
  • Disconnect the power supply connector.
  • Remove the rear side door trim partially.
  • Unclip the rear side door interior opening release cable.
  • Disconnect the supply connector.

REFITTING

I - REFITTING PREPARATION OPERATION

  • If necessary, replace the clips on the rear side door trim.

II - OPERATION FOR REMOVAL OF PART CONCERNED

  • Connect the supply connector (depending on the equipment level).
  • Clip on the rear side door interior opening release cable.
  • Refit the rear side door trim.
  • Connect the supply connector.
  • Refit:
    • the plate (2) ,
    • the bolts (1) .

III - FINAL OPERATION.

  • Check that it is working correctly.
