Renault Koleos Service Repair Manual: Front side door trim: Removal - Refitting

Side opening element trim

REMOVAL

I - REMOVAL PREPARATION OPERATION

Side opening element trim

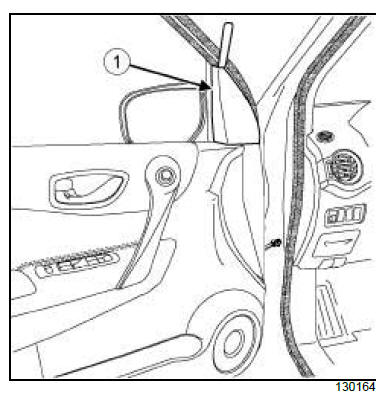

  • Unclip the trim (1) from the door mirror using the tool (Car. 1363)

II - OPERATION FOR REMOVAL OF PART CONCERNED

Side opening element trim

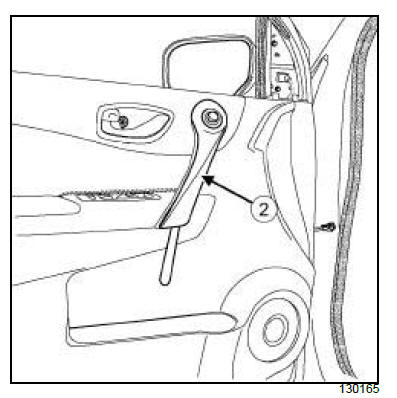

  • Unclip the trim (2) using the (Car. 1363)
  • Disconnect the supply connectors (depending on equipment level).

Side opening element trim

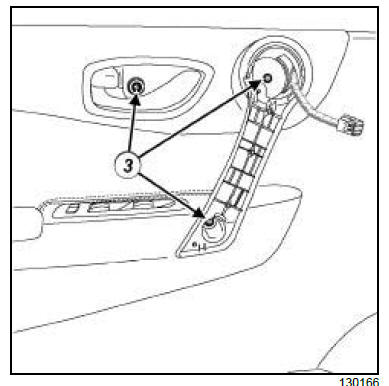

  • Remove the bolts (3) .

Side opening element trim

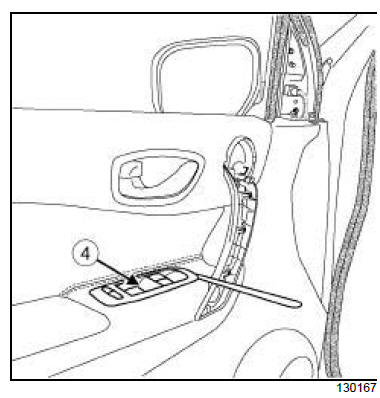

  • Remove the control board (4) using the tool (Car.1363)
  • Disconnect the supply connectors.
  • Remove the front side door trim partially.
  • Unclip the interior opening control cable using a flat-blade screwdriver.
  • Disconnect the door sill light connector.

REFITTING

I - REFITTING PREPARATION OPERATION

  • If necessary, replace the clips on the front side door trim.

II - REFITTING OPERATION FOR PART CONCERNED

  • Connect the supply connector (depending on equipment level).
  • Clip on the door interior handle cable.
  • Refit the front side door trim.

Side opening element trim

  • Connect the supply connector.

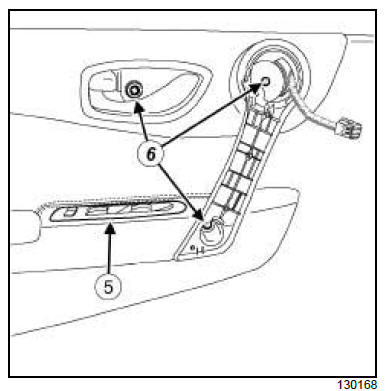

  • Refit:
    • the control board (5) ,
    • the bolts (6) .

Side opening element trim

  • Connect the door mirror switch connector.

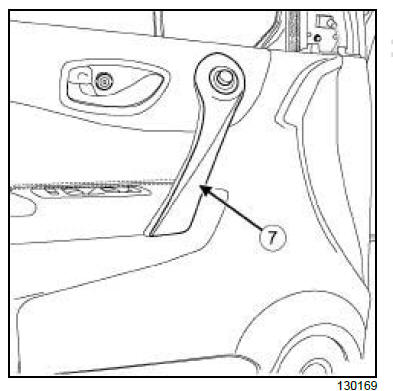

  • Refit the trim (7) .

III - FINAL OPERATION.

  • Check that it is working correctly.
  • Clip the trim (1) onto the door mirror.
    Side opening element trim
