REMOVAL

OPERATION FOR REMOVAL OF PART CONCERNED

Body internal trim

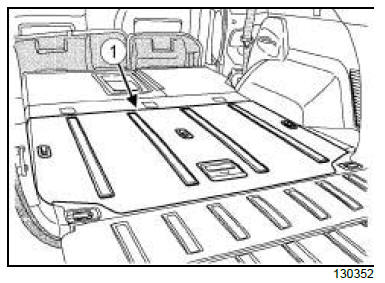

  • Remove the panel from the rear central luggage compartment floor (1) .

Body internal trim

  • Remove:

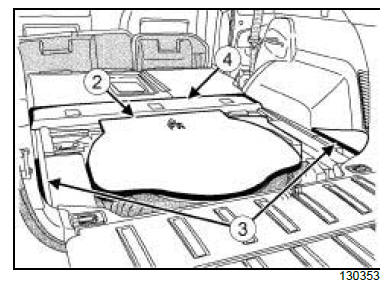

    • the front luggage compartment floor box (2) ,
    • the side luggage compartment floors (3) ,
    • the front central luggage compartment floor (4) ,
    • the C-pillar lower trim (see 71A, Body internal trim, C-pillar lower trim: Removal - Refitting, page 71A-9) .

Body internal trim

  • Unclip the box clip.

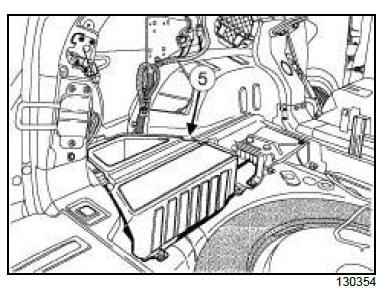

  • Remove the side luggage compartment box (5) .

Body internal trim

  • Unclip the box clip.

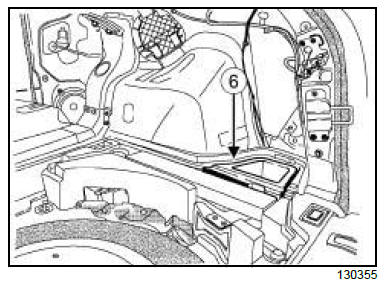

  • Remove the side luggage compartment box (6) .

REFITTING

REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the side luggage compartment boxes,
    • the clips,
    • the C-pillar lower trim (see 71A, Body internal trim, C-pillar lower trim: Removal - Refitting, page 71A-9) ,
    • the front central luggage compartment floor,
    • the side luggage compartment floors,
    • the front luggage compartment floor box,
    • the rear central luggage compartment floor.
