Renault Koleos Service Repair Manual: Rear end panel lining: Removal - Refitting

Renault Koleos Service Repair Manual / Trim and upholstery / Body internal trim / Rear end panel lining: Removal - Refitting

REMOVAL

OPERATION FOR REMOVAL OF PART CONCERNED

Body internal trim

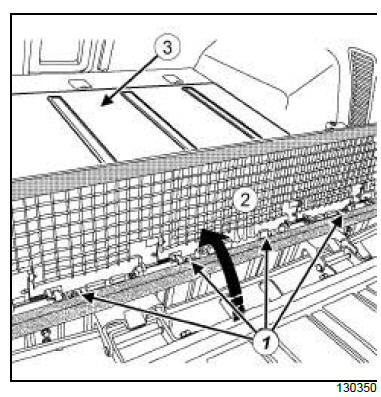

  • Open the rear end panel lining (2) .
  • Remove:
    • the bolts (1) ,
    • the rear central luggage compartment floor (3) ,
    • the front luggage compartment floor box.

Body internal trim

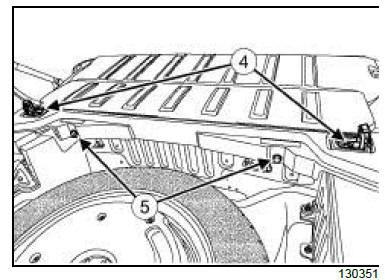

  • Remove:
    • the luggage compartment net hook bolts (4) ,
    • the clips (5) ,
    • the rear end panel lining.

REFITTING

I - REFITTING PREPARATION OPERATION

  • Check the condition of the clips and replace them if necessary.

II - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the rear end panel lining,
    • the clips (5) ,
    • the luggage compartment net hook bolts (4) ,
    • the front luggage compartment floor box,
    • the rear central luggage compartment floor (3) .
  • Close the rear end panel lining (2) .
  • Refit the bolts (1) .
