REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Remove:
    • the front door sill lining (see 71A, Body internal trim, Front door sill lining: Removal - Refitting, page 71A-7) ,
    • the rear door sill lining (see 71A, Body internal trim, Rear door sill lining: Removal - Refitting, page 71A-8) ,
    • the B-pillar trim (see 71A, Body internal trim, Bpillar trim: Removal - Refitting, page 71A-14) ,
    • the front side door seal partially (see Front side door frame seal: Removal - Refitting) (65A, Opening element sealing),
    • the rear side door seal partially (see Rear side door seal: Removal - Refitting) (65A, Opening element sealing).

II - OPERATION FOR REMOVAL OF PART CONCERNED

Body internal trim

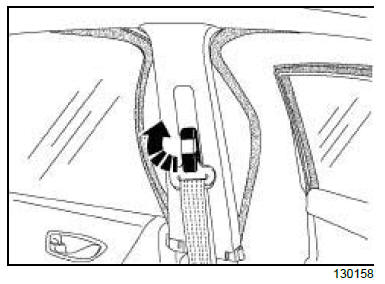

  • Remove the cover.

Body internal trim

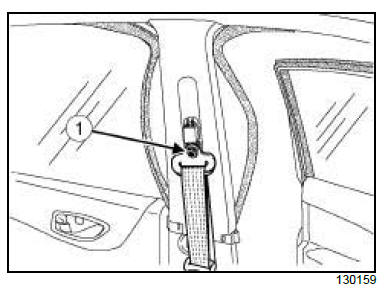

  • Remove:
    • the seat belt upper bolt (1) ,
    • the seat belt, partially.

Body internal trim

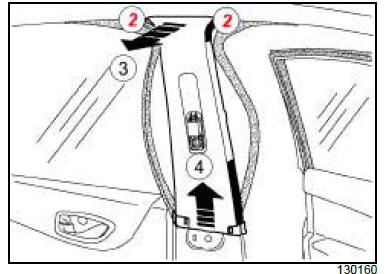

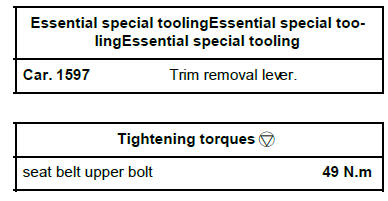

  • Unclip the clips using the trim removal tool (Car.1597).
  • Remove the top of the trim at (3) .
  • Lift the trim at (4) .
  • Remove the B-pillar upper trim.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

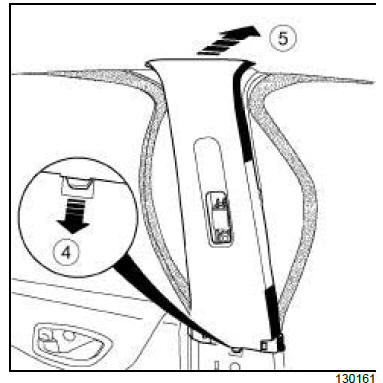

Body internal trim

  • Refit:
    • the B-pillar upper trim at (4) and (5) ,
    • the seat belt,
    • the seat belt upper bolt.
  • Torque tighten the seat belt upper bolt (49 N.m).
  • Refit the cover.

II - FINAL OPERATION

  • Refit:
    • the rear side door seal (see Rear side door seal: Removal - Refitting) (65A, Opening element sealing),
    • the front side door seal (see Front side door frame seal: Removal - Refitting) (65A, Opening element sealing),
    • the B-pillar trim (see 71A, Body internal trim, B-pillar trim: Removal - Refitting, page 71A-14) ,
    • the rear door sill lining (see 71A, Body internal trim, Rear door sill lining: Removal - Refitting, page 71A-8) ,
    • the front door sill lining (see 71A, Body internal trim, Front door sill lining: Removal - Refitting, page 71A-7) .
    A-pillar trim: Removal - Refitting

    B-pillar trim: Removal - Refitting
