Renault Koleos Service Repair Manual: Engine cooling system: Operating diagram

Renault Koleos Service Repair Manual / Engine and peripherals / Cooling / Engine cooling system: Operating diagram

2TR, and FK0 or FK8 - 2TR, and ND5 or ND8

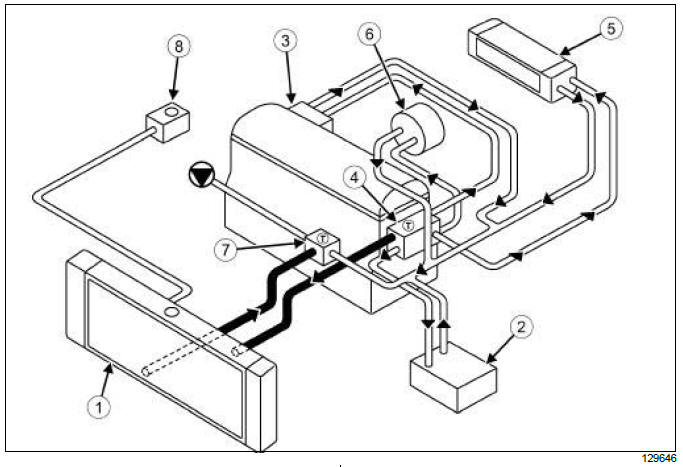

2TR, and FK0 or FK8

Cooling

  1. Cooling radiator
  2. Gearbox oil cooler
  3. Coolant - oil heat exchanger
  4. Cylinder head thermostat
  5. Heater matrix
  6. Throttle valve
  7. Cylinder block thermostat
  8. Expansion bottle

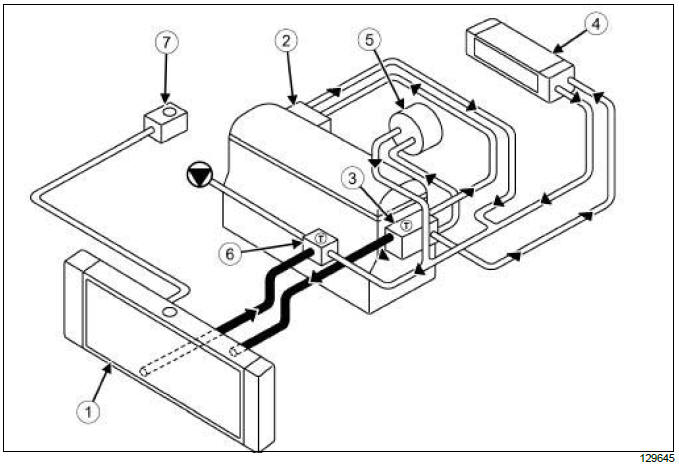

2TR, and ND5 or ND8

Cooling

  1. Cooling radiator
  2. Coolant - oil heat exchanger
  3. Cylinder head thermostat
  4. Heater matrix
  5. Throttle valve
  6. Cylinder block thermostat
  7. Expansion bottle

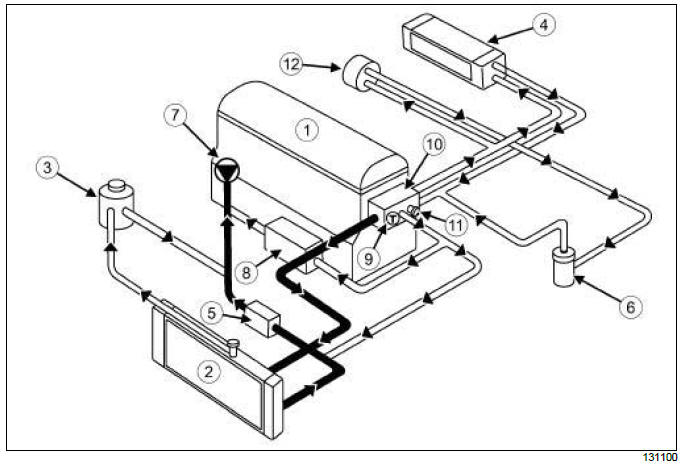

M9R, and 6-SPEED AUTOMATIC GEARBOX

Cooling

  1. Engine
  2. Cooling radiator
  3. Expansion bottle
  4. Heater matrix
  5. Coolant - oil heat exchanger
  6. Automatic gearbox oil cooler
  7. Electric coolant pump
  8. Water pump
  9. Exhaust gas cooler
  10. Thermostat
  11. Thermostat support
  12. Bleed screw
  13. Turbocharger

Cooling

  1. Engine
  2. Cooling radiator
  3. Expansion bottle
  4. Heater matrix
  5. Coolant - oil heat exchanger
  6. Electric coolant pump
  7. Water pump
  8. Exhaust gas cooler
  9. Thermostat
  10. Thermostat support
  11. Bleed screw
  12. Turbocharger
