Renault Koleos Service Repair Manual: Cab floor lining: Removal - Refitting

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Remove:
    • the front door sill lining (see 71A, Body internal trim, Front door sill lining: Removal - Refitting, page 71A-7) ,
    • the frame seal of the front side door (see Front side door frame seal: Removal - Refitting) (65A, Door sealing).

II - OPERATION FOR REMOVAL OF PART CONCERNED

Body internal trim

  • Remove:

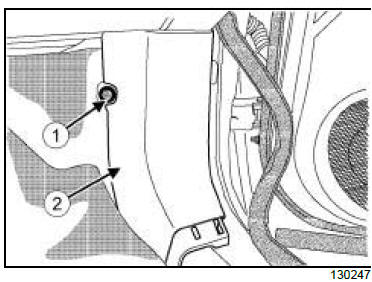

    • the bolt (1) ,
    • the cab floor lining (2) .

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the cab floor lining,
    • the bolt.

II - FINAL OPERATION.

  • Refit:
    • the front side door frame seal (see Front side door frame seal: Removal - Refitting) (65A, Door sealing),
    • the front door sill lining (see 71A, Body internal trim, Front door sill lining: Removal - Refitting, page 71A-7) .

Front door sill lining: Removal - Refitting

REMOVAL

OPERATION FOR REMOVAL OF PART CONCERNED

Body internal trim

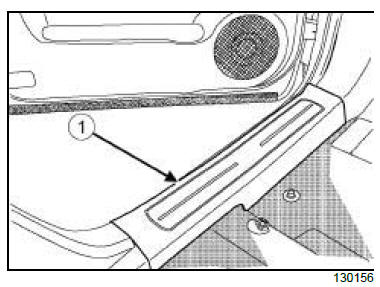

  • Unclip the front door sill lining (1) .

REFITTING

I - REFITTING PREPARATION OPERATION

  • Replace the clips of the door sill lining if necessary.

II - REFITTING OPERATION FOR PART CONCERNED

  • Clip on the front door sill lining

Rear door sill lining: Removal - Refitting

REMOVAL

OPERATION FOR REMOVAL OF PART CONCERNED

Body internal trim

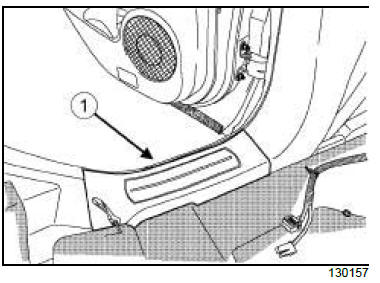

  • Unclip the rear door sill lining (1) .

REFITTING

I - REFITTING PREPARATION OPERATION

  • Replace the clips of the rear door sill lining if necessary.

II - REFITTING OPERATION FOR PART CONCERNED

  • Clip on the rear door sill lining.
    Headlining: Removal - Refitting

    C-pillar lower trim: Removal - Refitting
