Renault Koleos Service Repair Manual: Front door side exterior weather strip: Removal - Refitting

Renault Koleos Service Repair Manual / Sealing and soundproofing / Window sealing / Front door side exterior weather strip: Removal - Refitting

Window sealing

REMOVAL

I - REMOVAL PREPARATION OPERATION

Window sealing

  • Remove:

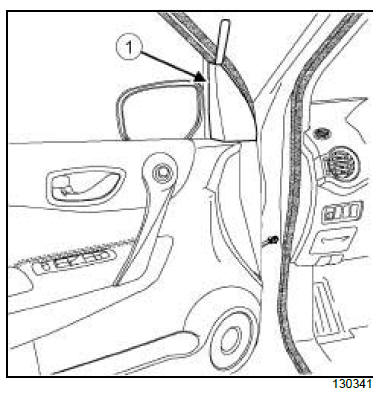

    • the interior trim (1) ,
    • the front side door trim (see Front side door trim: Removal - Refitting) (72A, Side opening elements trim).

II - OPERATION FOR REMOVAL OF PART CONCERNED

Window sealing

  • Remove:

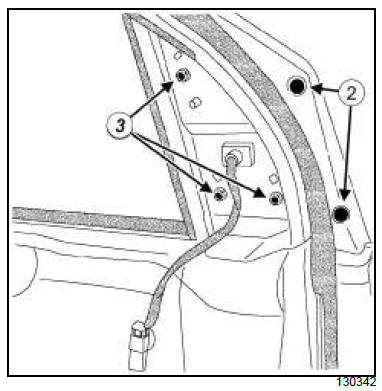

    • the clips (2) ,
    • the bolts (3) .
  • Disconnect the connector (depending on equipment level).
  • Remove the door mirror.

Window sealing

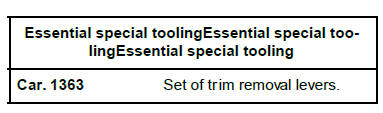

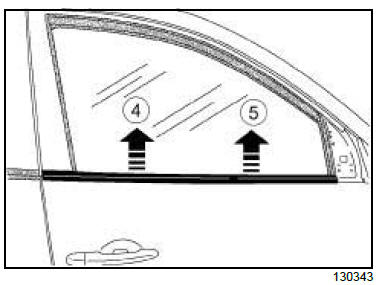

  • Carefully remove the front side door exterior weatherstrip in the direction of (4) and (5) using the tool (Car. 1363).

REFITTING

Window sealing

  • Refit:

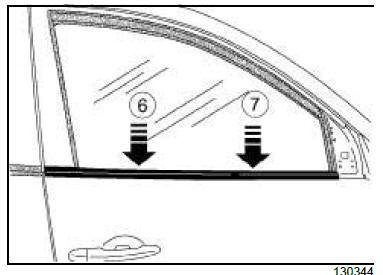

    • the front side door exterior weatherstrip in the direction of (6) and (7) ,
    • the door mirror.
  • Connect the connector (depending on the equipment level).
  • Refit:
    • the clips (2) ,
    • the bolts (3) .

FINAL OPERATION.

  • Refit:
    • the front side door trim (see Front side door trim: Removal - Refitting) (72A, Side opening elements trim),
    • the interior trim.

Rear side door exterior weather strip: Removal - Refitting

Window sealing

REMOVAL

OPERATION FOR REMOVAL OF PART CONCERNED

Window sealing

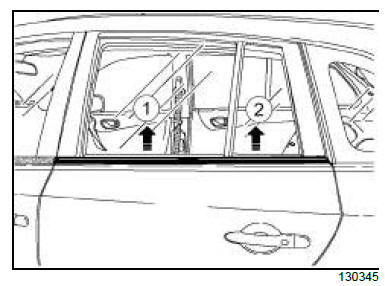

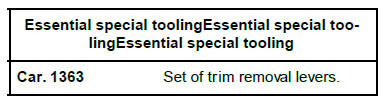

  • Carefully remove the exterior weatherstrip in the direction of (1) and (2) using the tool (Car. 1363).

REFITTING

REFITTING OPERATION FOR PART CONCERNED

  • Refit the rear side exterior door weatherstrip.
    Front side door glass run channel: Removal - Refitting

    Glass run channel in rear side door: Removal - Refitting
