Renault Koleos Service Repair Manual: A-pillar air distribution duct: Removal - Refitting

Renault Koleos Service Repair Manual / Air conditioning / Heating / A-pillar air distribution duct: Removal - Refitting

REMOVAL

I - REFITTING PREPARATION OPERATION

1 - Driver's side

  • Remove:
    • the dashboard lower cover on the driver's side (see Dashboard: Removal - Refitting) (57A, Interior equipment),
    • the lower cover on the left-hand side of the centre panel (see Dashboard: Removal - Refitting) (57A, Interior equipment).

2 - Front passenger side

  • Remove:
    • the glovebox (see Glovebox: Removal - Refitting) ( 57A, Interior equipment),
    • the lower cover on the right-hand side of the centre panel (see Dashboard: Removal - Refitting) (57A, Interior equipment).

II - OPERATION FOR REMOVAL OF PART CONCERNED

1 - Driver's side

Heating

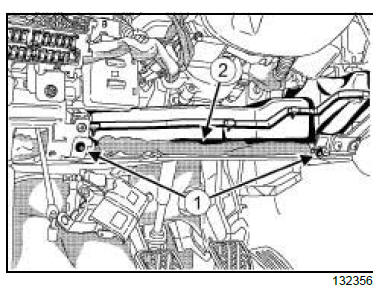

  • Remove:
    • the bolts (1) ,
    • the driver's side lower dashboard trim (2) .

Heating

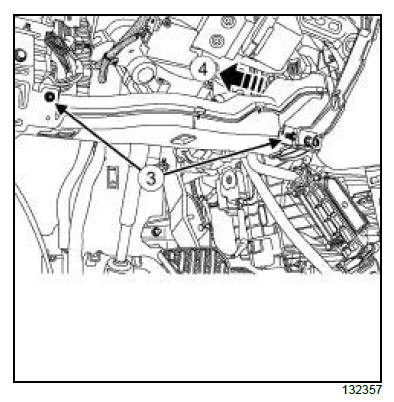

  • Remove:
    • the bolts (3) ,
    • the driver's side A pillar air distribution duct in the direction of the arrow (4) .

2 - Front passenger side

Heating

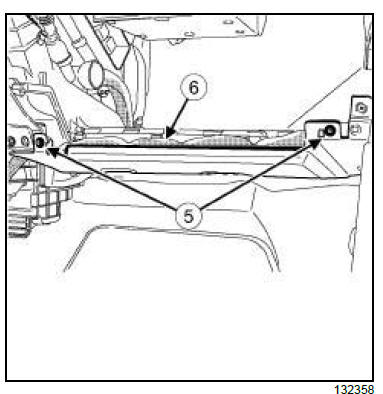

  • Remove:
    • the bolts (5) ,
    • the passenger side lower dashboard trim.

Heating

  • Remove:
    • the bolts (7) ,
    • the passenger side A pillar air distribution duct in the direction of the arrow (8) .

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

1 - Driver's side

  • Refit:
    • the driver's side A pillar air distribution duct,
    • the bolts for the A pillar air distribution duct on the driver's side,
    • the driver's side lower dashboard trim,
    • the dashboard lower trim bolts on the driver's side.

2 - Front passenger side

  • Refit:
    • the passenger side A pillar air distribution duct,
    • the bolts for the A pillar air distribution duct on the passenger side,
    • the passenger side lower dashboard trim,
    • the dashboard lower trim bolts on the passenger side.

II - FINAL OPERATION.

1 - Driver's side

  • Refit:
    • the lower cover on the left-hand side of the centre panel (see Dashboard: Removal - Refitting) (57A, Interior equipment),
    • the dashboard lower cover on the driver's side (see Dashboard: Removal - Refitting) (57A, Interior equipment).

2 - Front passenger side

  • Remove:
    • the lower cover on the right-hand side of the centre panel (see Dashboard: Removal - Refitting) (57A, Interior equipment),
    •  the glovebox (see Glovebox: Removal - Refit- 132359 ting) (57A, Interior equipment).
