REAR SEATS AIR DUCT

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Remove the rear seat (see Complete rear seat: Removal - Refitting) (76A, Rear seat frames and seat runners).

Heating

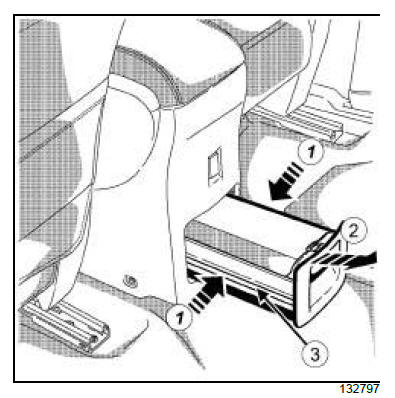

  • Remove the rear storage compartment from the centre console (3) in the direction of (2) by pushing at (1) .

Heating

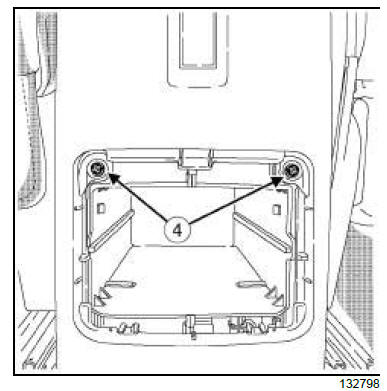

  • Remove the bolts (4) .

Heating

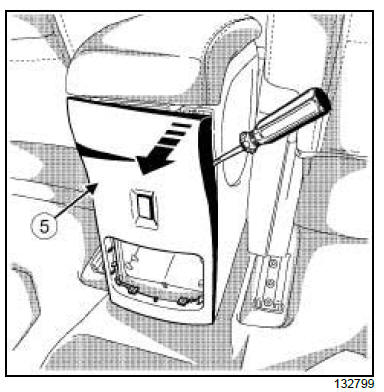

  • Remove the rear cover (5) from the centre console using a flat-blade screwdriver.

II - OPERATION FOR REMOVAL OF PART CONCERNED

Heating

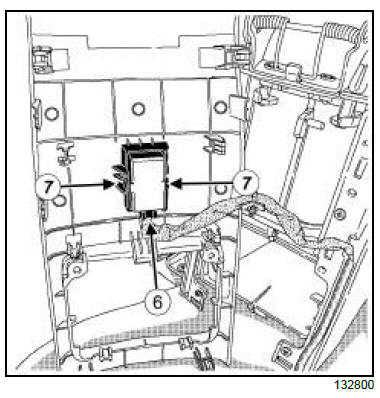

  • Disconnect the connector (6) .
  • Unclip the clips (7) .
  • Remove the rear control panel.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit the rear control panel.
  • Attach the clips.
  • Connect the connector.

II - FINAL OPERATION.

  • Refit:
    • the centre console rear cover,
    • the bolts (4) ,
    • the centre console rear storage compartment,
    • the rear seat (see Complete rear seat: Removal - Refitting) (76A, Rear seat frames and seat runners).
