Renault Koleos Service Repair Manual: Control panel: Removal - Refitting

Renault Koleos Service Repair Manual / Air conditioning / Heating / Control panel: Removal - Refitting

AIR CON 02

REMOVAL

I - REMOVAL PREPARATION OPERATION

Heating

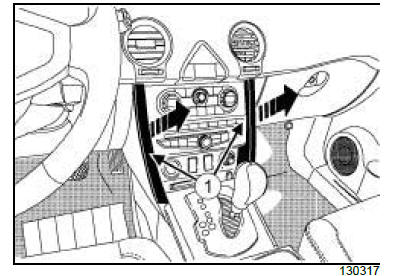

  • Remove the side trims (1) from the centre panel.

Heating

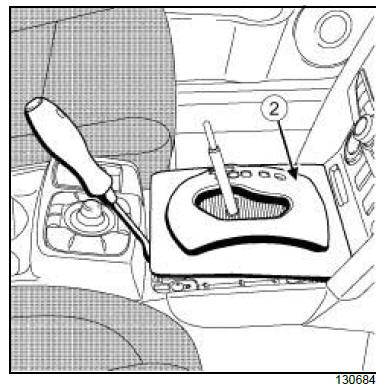

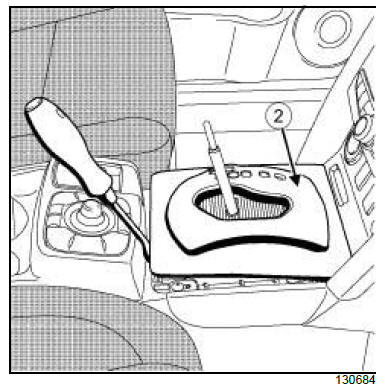

  • Remove the plate (2) from the gear lever (see Centre console: Removal - Refitting) (57A, Interior equipment).

Heating

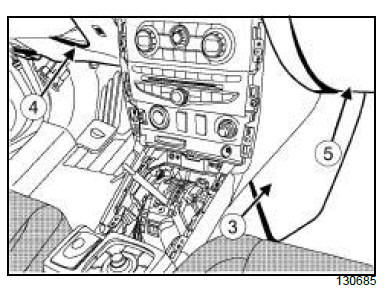

  • Remove:

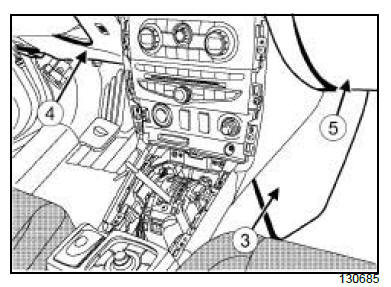

    • the lower covers (3) from the centre panel (see Dashboard: Removal - Refitting) (57A, Interior equipment),
    • the dashboard lower cover (4) on the driver's side (see Dashboard: Removal - Refitting) (57A, Interior equipment),
    • the glovebox (5) (see Glovebox: Removal - Refitting) (57A, Interior equipment).

Heating

  • Remove:

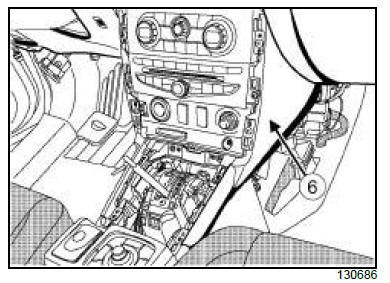

    • the side trims (6) from the centre panel (see Dashboard: Removal - Refitting) (57A, Interior equipment),
    • the CD changer (see CD changer: Removal - Refitting) (86A, Radio),
    • the radio (see Car radio: Removal - Refitting) (86A, Radio).

II - OPERATION FOR REMOVAL OF PART CONCERNED

Heating

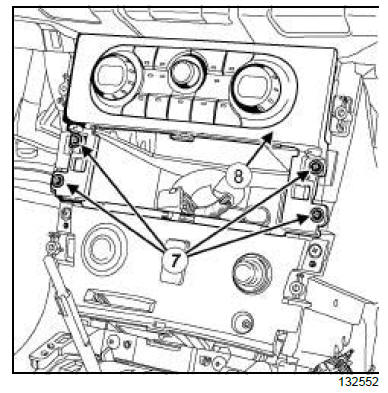

  • Remove:
    • the bolts (7) ,
    • the air conditioning control panel (8) .

Heating

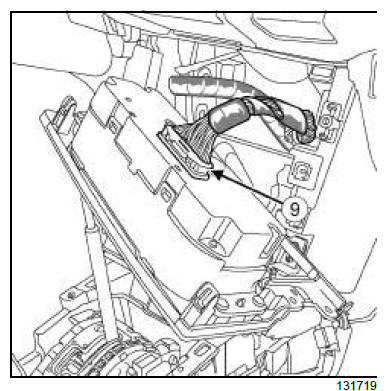

  • Disconnect the connector (9) .

Heating

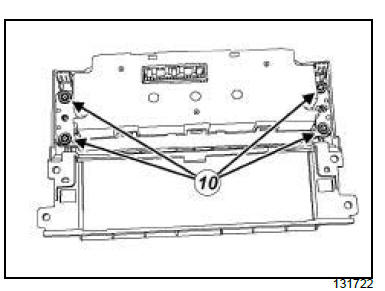

  • Remove:
    • the control panel bolts (10) ,
    • the control panel.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit the control panel bolts.
  • Connect the control panel connector.
  • Refit:
    • the control panel,
    • the bolts (7) .

II - FINAL OPERATION.

  • Refit:
    • the radio (see Car radio: Removal - Refitting) (86A, Radio),
    • the CD changer (see CD changer: Removal - Refitting) (86A, Radio),
    • the side centre panel side trims (see Dashboard: Removal - Refitting) (57A, Interior equipment),
    • the glovebox (see Glovebox: Removal - Refitting) ( 57A, Interior equipment),
    • the dashboard lower cover on the driver's side (see Dashboard: Removal - Refitting) (57A, Interior equipment),
    • the lower covers to the centre panel (see Dashboard: Removal - Refitting) (57A, Interior equipment),
    • the gear lever plate (see Centre console: Removal - Refitting) (57A, Interior equipment),
    • the centre panel side trims.

AIR CON 01 or BASIC HEATING

REMOVAL

I - REMOVAL PREPARATION OPERATION

Heating

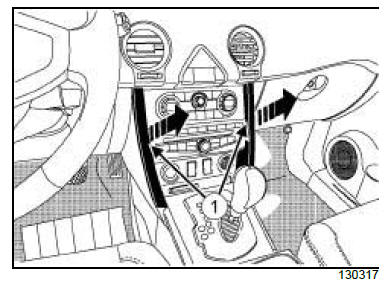

  • Remove the side trims (1) from the centre panel.

Heating

  • Remove the plate (2) from the gear lever (see Centre console: Removal - Refitting) (57A, Interior equipment).

Heating

  • Remove:
    • the lower covers (3) from the centre panel (see Dashboard: Removal - Refitting) (57A, Interior equipment),
    • the dashboard lower cover (4) on the driver's side (see Dashboard: Removal - Refitting) (57A, Interior equipment),
    • the glovebox (5) (see Glovebox: Removal - Refitting) (57A, Interior equipment).

Heating

  • Remove:

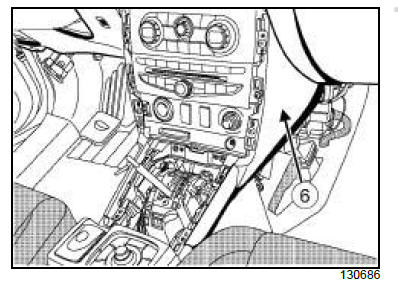

    • the side trims (6) from the centre panel (see Dashboard: Removal - Refitting) (57A, Interior equipment),
    • the CD changer (see CD changer: Removal - Refitting) (86A, Radio),
    • the radio (see Car radio: Removal - Refitting) (86A, Radio).

Heating

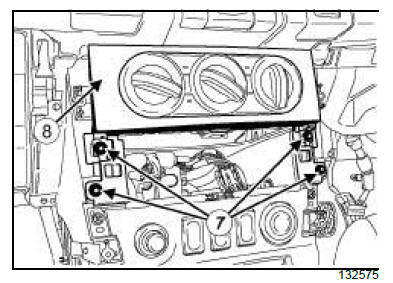

  • Remove:
    • the bolts (7) ,
    • the cover (8) .

II - OPERATION FOR REMOVAL OF PART CONCERNED

Heating

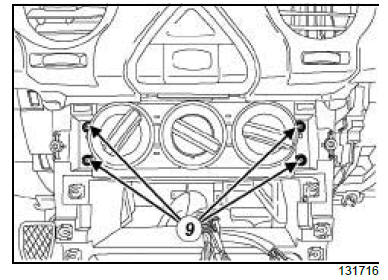

  • Remove the bolts (9) .

Heating

Note: Mark the routing of the air distribution cable.

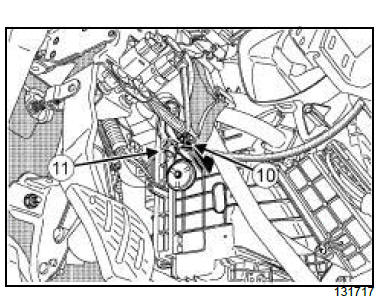

  • Remove:
    • the air mixer wiring from the sleeve stop (10) ,
    • the retaining ring (11) ,
    • the air mixing cable.

Heating

Note: Note the routing of the air distribution cable.

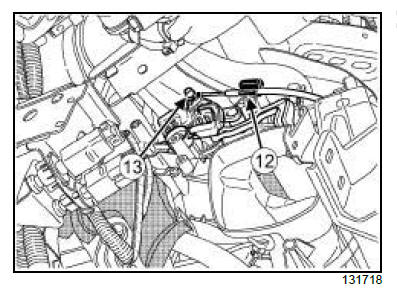

  • Remove:
    • the air distribution cable from the sleeve stop (12) ,
    • the retaining ring (13) ,
    • the air distribution cable.

Heating

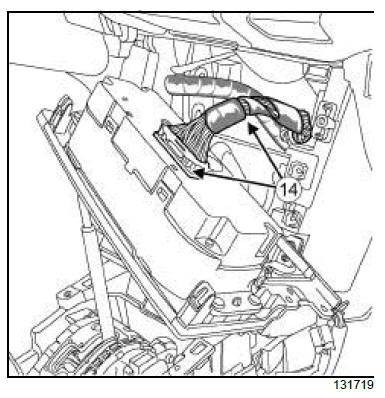

  • Disconnect the connectors (14) .
  • Remove the control panel.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit the control panel.
  • Connect the connectors (14) .
  • Refit:
    • the air distribution cable,
    • the air distribution cable to the sleeve stop,
    • the retaining ring,
    • the air mixer cable.
    • the air mixer cable to the sleeve stop,
    • the retaining ring,
    • the bolts (9) .

II - FINAL OPERATION.

  • Refit:
    • the cover (8) ,
    • the bolts (7) ,
    • the radio (see Car radio: Removal - Refitting) (86A, Radio),
    • the CD changer (see CD changer: Removal - Refitting) (86A, Radio),
    • the side centre panel side trims (see Dashboard: Removal - Refitting) (57A, Interior equipment),
    • the glovebox (see Glovebox: Removal - Refitting) ( 57A, Interior equipment),
    • the dashboard lower cover on the driver's side (see Dashboard: Removal - Refitting) (57A, Interior equipment),
    • the lower covers (3) from the centre panel (see Dashboard: Removal - Refitting) (57A, Interior equipment),
    • the gear lever plate (see Centre console: Removal - Refitting) (57A, Interior equipment),
    • the centre panel side trims.
