REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Remove the rear side door trim (see Rear side door trim: Removal - Refitting) (72A, Side opening element trim).

II - OPERATION FOR REMOVAL OF PART CONCERNED

Windows

  • Disconnect the connector of the rear side door speaker.

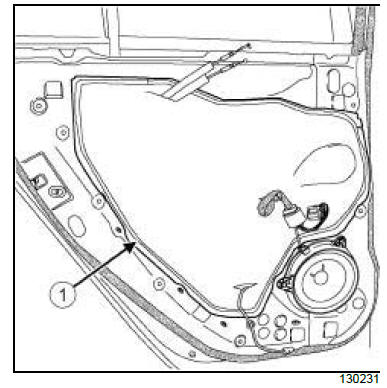

  • Remove the door sealing film (1) .

Windows

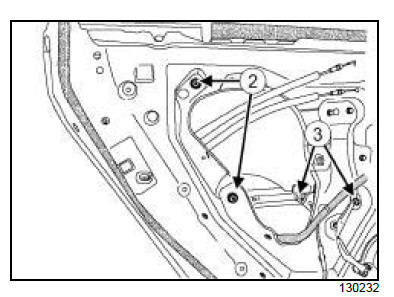

  • Lower the window to access the sliding window bolts (3) .
  • Remove:
    • the bolts (2) ,
    • the bolts (3) .

Windows

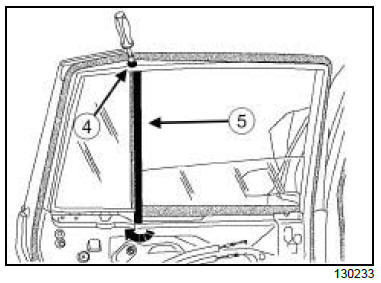

  • Remove:
    • the bolt (4) ,
    • the run channel (5) ,
    • the rear door window seal partially,
    • the rear side door sliding window.

REFITTING

I - REFITTING PREPARATION OPERATION

Note: When replacing the rear side door sliding window, refit the window mountings.
  • Clean using HEPTANE (see Vehicle: Parts and consumables for the repair) (04B, Consumables - Products).
  • Wipe the bonding area of the window mountings using a LINT-FREE CLOTH (see Vehicle: Parts and consumables for the repair) (04B, Consumables - Products).

Windows

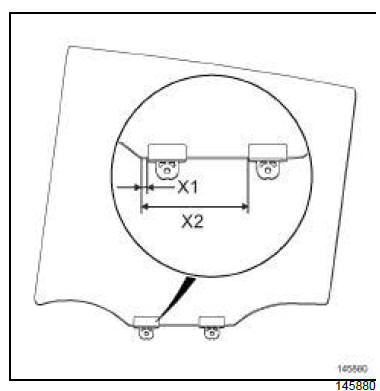

  • Bond the window mountings in the position shown in the diagram.

    (X1) = 9 mm, (X2) = 128 mm

  • Leave to dry for at least 10 minutes.

II - REFITTING OPERATION FOR PART CONCERNED

Windows

  • Refit:
    • the rear side door window seal,
    • the rear side sliding window.
    • the run channel (5) ,
    • the bolt (4) ,

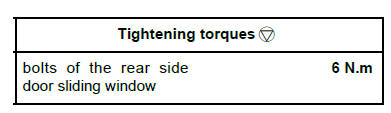

  • Torque tighten the bolts of the rear side door sliding window (6 N.m) (6) .

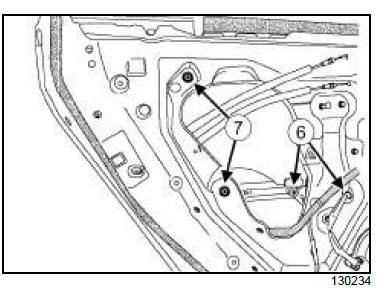

  • Refit:
    • the bolts (7) ,
    • the door sealing film (1) .
  • Connect the connector of the rear side door speaker.

III - FINAL OPERATION

  • Carry out a function test.
  • Refit the rear side door trim (see Rear side door trim: Removal - Refitting) (72A, Side opening element trim).
