REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Remove the rear side door trim (see Rear side door trim: Removal - Refitting) (72A, Side opening element trim).
  • Place the sliding window of the rear side door at the bottom of the box to remove the window bolts.

Windows

  • Remove:
    • the door channel partially,

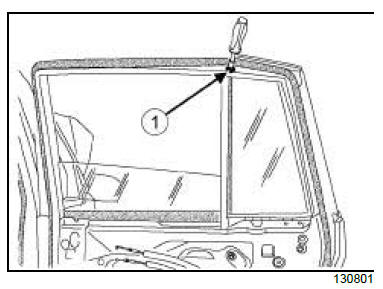

    • the fixed upright upper bolt (1) .

Windows

  • Remove:

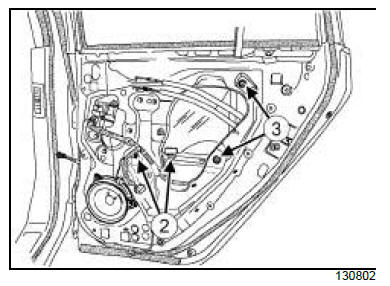

    • the window bolts (2) ,
    • the fixed upright bolts (3) ,
    • the fixed upright partially.

Windows

  • Remove:

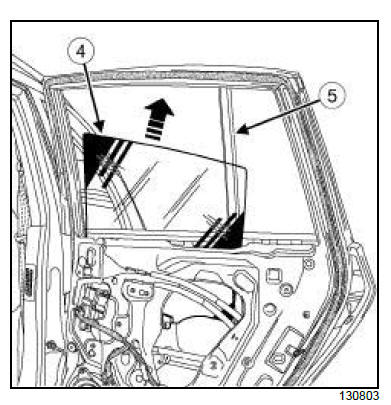

    • the sliding window (4) ,
    • the fixed upright (5) .

II - OPERATION FOR REMOVAL OF PART CONCERNED

Windows

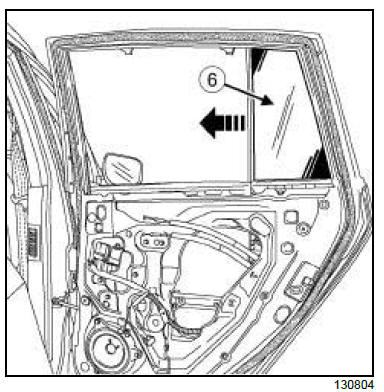

  • Remove the rear side door fixed window (6) .

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit the rear side door fixed window.

II - FINAL OPERATION.

  • Refit:
    • the fixed upright,
    • the sliding window into the door box section,
    • the fixed window bolts,
    • the fixed upright bolts,
    • the fixed upright upper bolt,
    • the door channel,
    • the rear side door trim (see Rear side door trim: Removal - Refitting) (72A, Side opening element trim).
