Non-side opening element mechanisms

REMOVAL

I - OPERATION FOR REMOVAL OF PART CONCERNED

  • Remove the tailgate trim (see Tailgate trim: Removal - Refitting) (73A, Non-side opening elements trim).

II - OPERATION FOR REMOVAL OF PART CONCERNED

Non-side opening element mechanisms

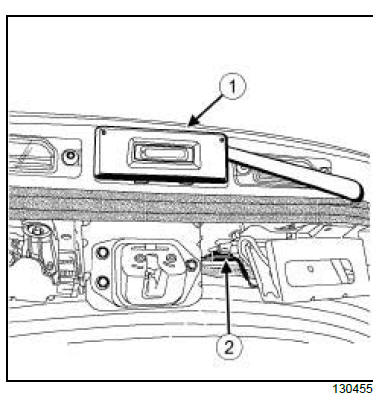

  • Remove the exterior opening control (1) of the tailgate using the tool (Car. 1597).
  • Disconnect the connector (2) from the exterior opening control of the tailgate.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Connect the connector (2) for the exterior opening control of the tailgate.
  • Refit the exterior opening control (1) of the tailgate.

II - FINAL OPERATION.

  • Refit the tailgate trim (see Tailgate trim: Removal - Refitting) (73A, Non-side opening elements trim).
