Renault Koleos Service Repair Manual: Rear side door lock barrel: Removal - Refitting

Renault Koleos Service Repair Manual / Mechanisms and accessories / Side opening element mechanisms / Rear side door lock barrel: Removal - Refitting

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Remove the door lock blanking cover.

II - OPERATION FOR REMOVAL OF PART CONCERNED

Side opening element mechanisms

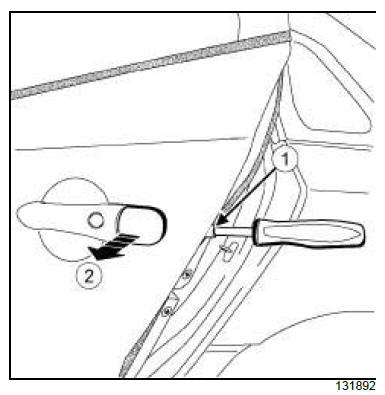

  • Undo the bolt (1) without removing it.
  • Remove the door lock barrel (2) .

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit the door lock barrel (2) .
  • Refit the bolt (1) .

II - FINAL OPERATION.

  • Refit the door lock blanking cover.
