I - LOCATION OF VEHICLE IDENTIFICATION PLATE (A)

Vehicle: Identification

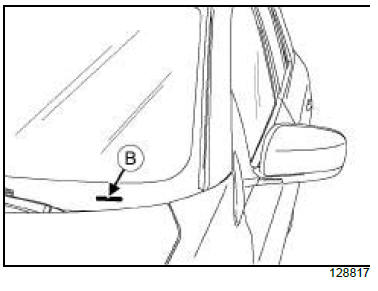

II - LOCATION OF THE VEHICLE IDENTIFICATION NUMBER (B)

Vehicle: Identification

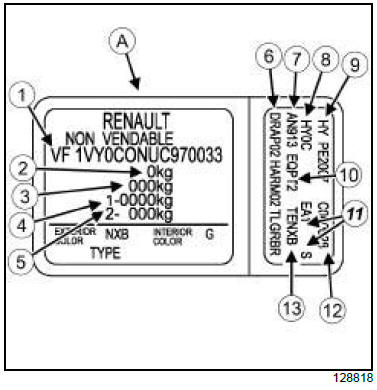

III - DETAILED VIEW OF THE VEHICLE IDENTIFICATION PLATE

Plate (A)

Vehicle: Identification

  1. Vehicle type mine and type number; this information also appears on marking (B)
  2. Maximum Gross Vehicle Weight
  3. Gross train weight, vehicle under load with trailer
  4. Maximum gross weight on front axle
  5. Maximum gross weight on rear axle
  6. Vehicle technical specifications
  7. Vehicle paint reference
  8. Equipment level
  9. Vehicle type
  10. Upholstery code
  11. Additional equipment details
  12. Fabrication number
  13. Interior trim code

IV - COLD-MARKING OF THE BODY

Vehicle: Identification

Note: If the complete body is being replaced, it must be marked in compliance with the current regulations.
