Renault Koleos Service Repair Manual: Parking brake lever: Adjustment

FOOT BRAKE MANUAL CONTROL

ADJUSTMENT

I - ADJUSTMENT PREPARATION OPERATION

  • Position the vehicle on a two-post lift (see Vehicle: Towing and lifting) (02A, Lifting equipment).
  • Remove the rear wheels (see 35A, Wheels and tyres, Wheel: Removal - Refitting, page 35A-1) .
  • Fit the rear brake disc using the wheel nuts.
  • Check:
    • that the cables slide freely,
    • the travel of the parking brake cables and engage them fully on the rear internal drum type disc.

Mechanical component controls

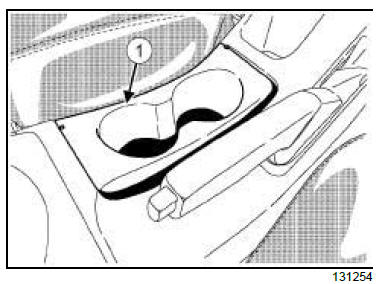

  • Remove the cup holder (1) .

Mechanical component controls

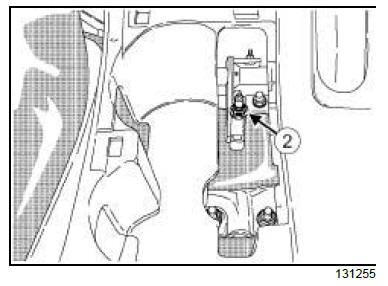

  • Raise the parking brake lever until the lock nut (2) can be accessed.
Note: Always replace the lock nut if it was removed.
  • Adjust the lock nut in order to loosen the cable completely.
  • Release the parking brake lever.

Mechanical component controls

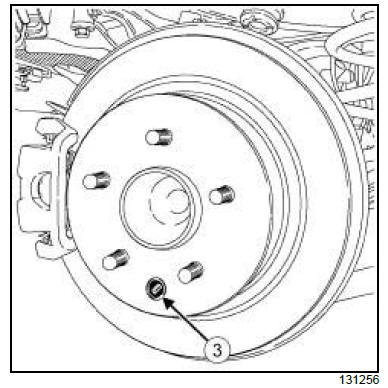

  • Remove the plug (3) from the rear brake disc adjustment opening.

Mechanical component controls

  • Turn:

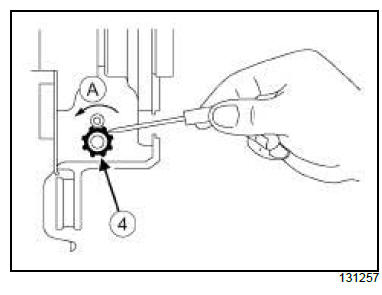

    • the adjustment mechanism (4) in the direction of (A) until it locks.
    • the adjustment mechanism 7 notches from the locked position,
    • the rear brake disc to check the absence of traction.
  • Refit the plug (3) on the rear brake disc adjustment opening.

II - ADJUSTMENT OPERATION FOR THE PARKING BRAKE CABLE

  • Pull on the parking brake lever fully. Check the operation by listening to the noise of the teeth (10 notches or more),
  • Adjust the parking brake lever travel by turning the adjustment nut (2) ,
  • Pull the parking brake lever to lock the brake disc,
  • Check that the parking brake lever travel is within the tolerance range of the number of notches recommended,
Note: Number of notches recommended: 7 to 8.
  • Turn the rear brake disc with the parking brake lever released,
  • Check that there is no friction.
  • Refit the rear wheels (see 35A, Wheels and tyres, Wheel: Removal - Refitting, page 35A-1) .
  • Check that the parking brake operates correctly. If not, adjust the parking brake cable again.
