Renault Koleos Service Repair Manual: Rear final drive: Removal - Refitting

Renault Koleos Service Repair Manual / Transmission / Rear axle / Rear final drive: Removal - Refitting

4X4 TRANSMISSION

Rear axle

IMPORTANT Consult the safety and cleanliness instructions and operation recommendations before carrying out any repair.

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Position the vehicle on a two-post lift (see Vehicle: Towing and lifting) (02A, Lifting equipment).
IMPORTANT To prevent the vehicle from falling, lash it to the vehicle lift using a strap.
  • Drain the oil from the rear final drive (see 26A, Rear axle, Rear axle oil: Draining - Filling, page 26A- 11) .
  • Remove:
    • the rear wheels (see Wheel: Removal - Refitting) (35A, Wheels and tyres).
    • the rear wheel driveshafts (see 29A, Driveshafts, Rear wheel driveshaft: Removal - Refitting, page 29A-8) .
  • Disconnect the longitudinal driveshaft from the rear final drive (see 29A, Driveshafts, Propshaft: Removal - Refitting, page 29A-12) .
  • Use a strap to attach the longitudinal driveshaft to the parking brake cable.

Rear axle

  • Remove:

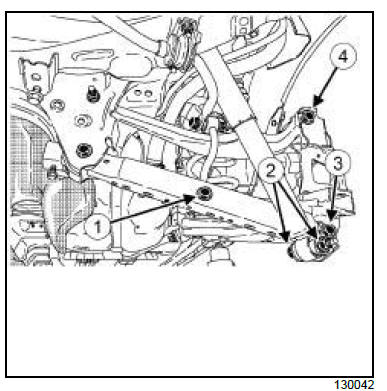

    • the rear anti-roll bar tie rod lower bolt and nut (1) ,
    • the rear shock absorber lower bolt and nut (2) ,
    • the rear stub axle carrier lower trailing link bolt and nut (3) ,
    • the upper arm bolt and nut (4) of the rear stub axle carrier.

Rear axle

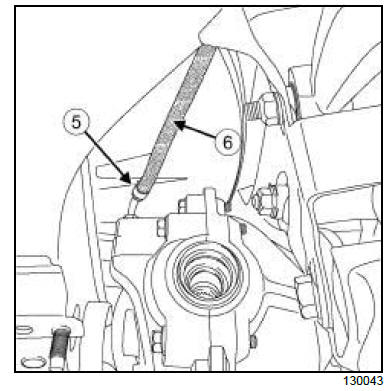

  • Remove the breather hose clip (5) from the rear final drive.
  • Disconnect the breather hose (6) from the rear final drive.

Rear axle

  • Disconnect:

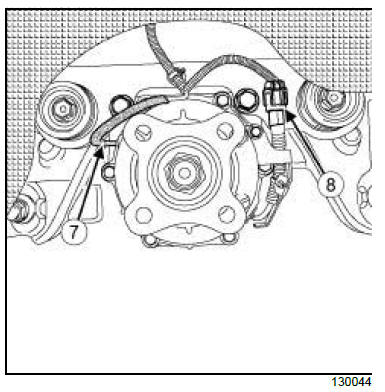

    • the rear final drive breather hose (7) from the electric coupler,
    • the electric coupler connector (8) .

II - OPERATION FOR REMOVAL OF PART CONCERNED

  • Fit the component jack under the rear final drive.

Rear axle

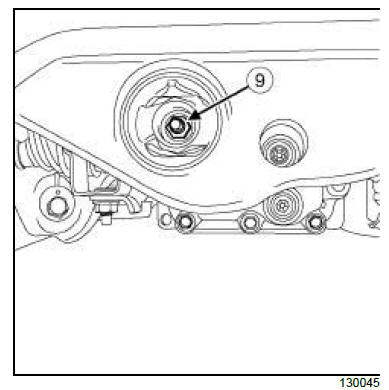

  • Remove the nut (9) from the rear final drive.

Rear axle

  • Remove:

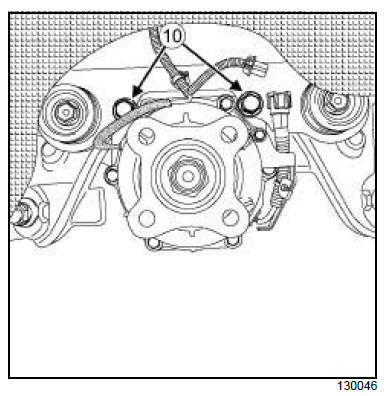

    • the bolts and the nut (10) from the rear final drive,
    • the rear final drive.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the rear final drive,
    • the rear final drive nut,
    • the rear final drive bolts and nut.

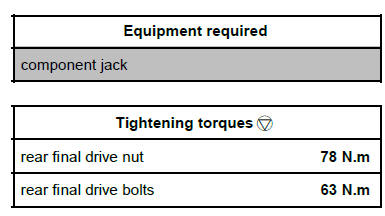

  • Torque tighten:
    • the rear final drive nut (78 N.m),
    • the rear final drive bolts (63 N.m).

II - FINAL OPERATION.

  • Connect:
    • the electric coupler connector,
    • the rear final drive breather hose to the electric coupler,
    • the rear final drive breather hose to the rear final drive.
  • Refit the rear final drive breather hose clip.
  • Refit:
    • the rear anti-roll bar tie rod lower bolt and nut,
    • the rear shock absorber lower bolt and nut,
    • the rear stub axle carrier lower trailing link bolt and nut,
    • the rear stub axle carrier upper arm bolt and nut.
  • Refit:
    • the rear wheel driveshafts (see 29A, Driveshafts, Rear wheel driveshaft: Removal - Refitting, page 29A-8) ,
    • the rear wheels (see Wheel: Removal - Refitting) (35A, Wheels and tyres).
  • Fill the rear final drive with oil (see 26A, Rear axle, Rear axle oil: Draining - Filling, page 26A-11) .

DISCHARGE LAMPS

  • Adjust:
    • the headlights (see Headlight: Adjustment) (80B, Headlights).
    • the headlight beam adjustment rear sensor (see Fault Finding - Programming) (80C, Xenon bulbs).



  • Adjust:
    • the rear axle geometry (see Rear axle system: Adjustment) (30A, General information)
    • the neutral steering wheel position (see Fault finding - Programming)(80B, Headlights).
