6-SPEED AUTOMATIC GEARBOX

Automatic gearbox

IMPORTANT Consult the safety and cleanliness advice and operation recommendations before carrying out any repair.

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Position the vehicle on a two-post lift.
IMPORTANT To prevent the vehicle from falling, lash it to the vehicle lift using a strap.
  • Remove the engine undertray.
  • Drain the automatic transmission oil .
  • Remove:
    • the wheel
    • the front wheel driveshaft.

II - OPERATION FOR REMOVAL OF PART CONCERNED

Automatic gearbox

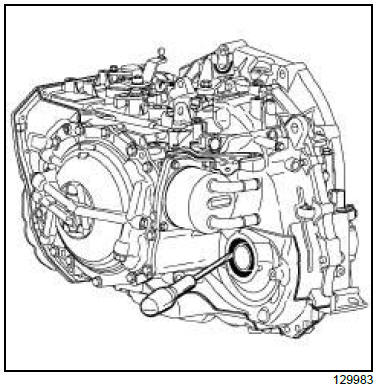

  • Remove the differential output seal on the side concerned using a screwdriver, without scratching the contact surfaces.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

1 - Right-hand differential output seal

Automatic gearbox

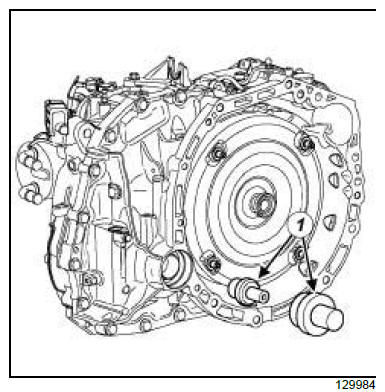

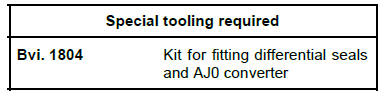

  • Refit the right-hand differential output seal using the tool (Bvi. 1804) (1) .

2 - Left-hand differential output seal

Automatic gearbox

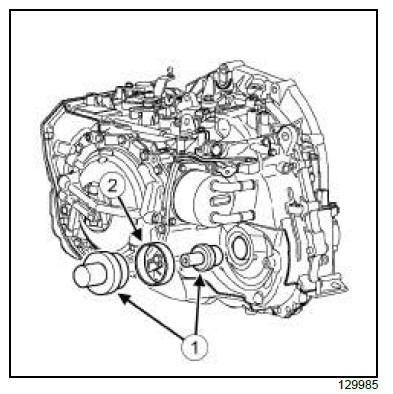

  • Refit the left-hand differential output seal using the tool (Bvi. 1804) (1) and spacer (2) .

II - FINAL OPERATION.

  • Refit:
    • the front wheel driveshaft.
    • the front wheel.
  • Top up the automatic transmission oil.
  • Refit the engine undertray.

FK0 or FK8

Automatic gearbox

IMPORTANT Consult the safety and cleanliness advice and operation recommendations before carrying out any repair.

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Position the vehicle on a two-post lift.
IMPORTANT To prevent the vehicle from falling, lash it to the vehicle lift using a strap.
  • Remove the engine undertray.
  • Drain the automatic gearbox.
  • Remove:
    • the wheel.
    • the front wheel driveshaft .

II - OPERATION FOR REMOVAL OF PART CONCERNED

Automatic gearbox

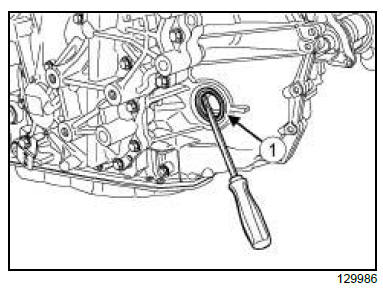

  • Remove the differential output seal (1) on the side concerned using a screwdriver, without scratching the contact surfaces.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

Automatic gearbox

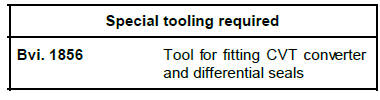

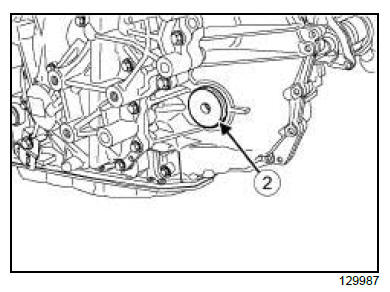

  • Refit the differential output seal on the side concerned using the tool (Bvi. 1856) (2) .

II - FINAL OPERATION

  • Refit:
  • the front wheel driveshaft.
  • the front wheel.
  • Top up the automatic transmission oil
  • Refit the engine undertray.
