Renault Koleos Service Repair Manual: Hydraulic distributor: Removal - Refitting

Renault Koleos Service Repair Manual / Transmission / Automatic gearbox / Hydraulic distributor: Removal - Refitting

6-SPEED AUTOMATIC GEARBOX

Automatic gearbox

IMPORTANT Consult the safety and cleanliness advice and operation recommendations before carrying out any repair.

REMOVAL

REMOVAL PREPARATION OPERATION

  • Position the vehicle on a two-post lift.
IMPORTANT To prevent the vehicle from falling, lash it to the vehicle lift using a strap.
  • Remove the automatic gearbox.

Automatic gearbox

  • Remove:

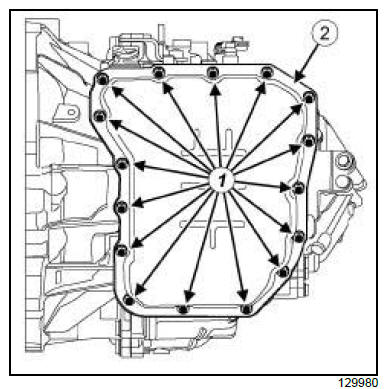

    • the hydraulic distributor housing bolts (1) ,
    • the hydraulic distributor housing (2) ,
    • the hydraulic distributor housing seal.

Automatic gearbox

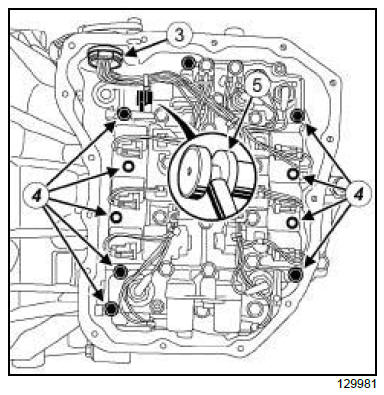

  • Unclip the internal wiring connector (3) .
  • Remove the hydraulic distributor bolts (4) .
  • Disconnect the automatic gear lever (5) by tilting the hydraulic distributor slightly.
  • Remove the hydraulic distributor.

Automatic gearbox

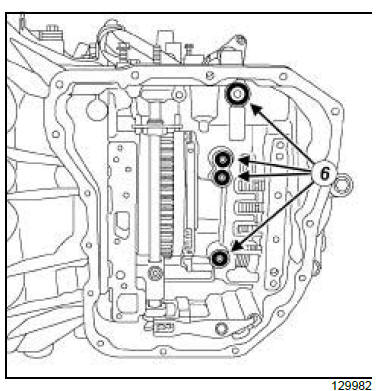

  • Remove the O-rings (6) .

REFITTING

I - REFITTING PREPARATION OPERATION

  • Always replace:
    • the hydraulic distributor housing seal.
    • the O-ring.
  • Clean the joint faces usingsurface cleaner on the automatic gearbox and on the hydraulic distributor housing, taking care not to damage the contact surfaces.
  • Refit the new O-rings.

II - REFITTING OPERATION FOR PART CONCERNED

  • Refit the hydraulic distributor.
  • Connect the automatic gear lever by tilting the hydraulic distributor slightly.
  • Refit the hydraulic distributor bolts.

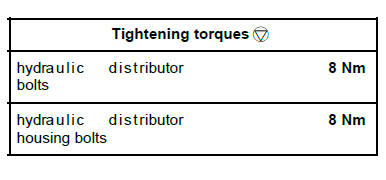

  • Torque tighten the hydraulic distributor bolts (8 Nm).
  • Clip the internal wiring connector.
  • Refit:
    • the hydraulic distributor housing seal on the hydraulic distributor housing,
    • the hydraulic distributor housing,
    • the hydraulic distributor casing bolts.
  • Torque tighten the hydraulic distributor housing bolts (8 Nm).

III - FINAL OPERATION.

  • Refit the automatic gearbox.
