Renault Koleos Service Repair Manual: Differential output seal: Removal - Refitting

Renault Koleos Service Repair Manual / Transmission / Manual gearbox / Differential output seal: Removal - Refitting

6-SPEED MANUAL GEARBOX

Manual gearbox

IMPORTANT Consult the safety and cleanliness advice and operation recommendations before carrying out any repair.

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Position the vehicle on a two-post lift.
IMPORTANT To prevent the vehicle from falling, lash it to the vehicle lift using a strap.
  • Remove the engine undertray.
  • Drain the manual gearbox.
  • Remove:
    • the front wheel
    • the driveshaft

II - OPERATION FOR REMOVAL OF PART CONCERNED

Manual gearbox

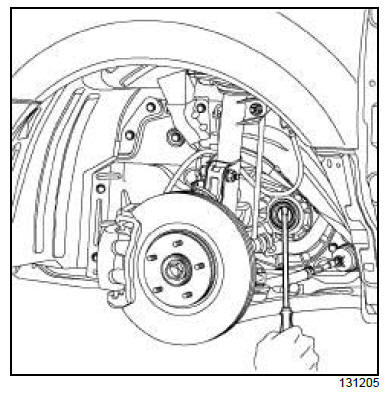

  • Remove the differential output seal on the side concerned using a screwdriver.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

Manual gearbox

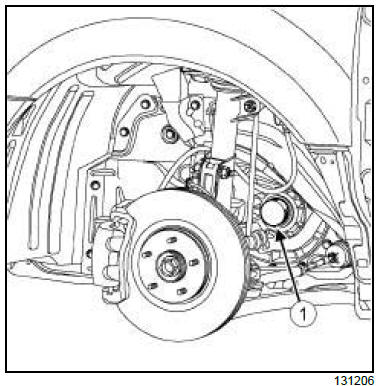

  • Refit the differential output seal on the side concerned using the tool (Bvi. 1689) (1) .

II - FINAL OPERATION

  • Refit the driveshaft.
  • Fill the manual gearbox with oil.
  • Refit:
    • the front wheel.
    • the engine undertray.
