Renault Koleos Service Repair Manual: M9R

Engine mounting

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Position the vehicle on a two-post lift .
  • Remove:
    • the air inlet sleeve clips
    • the air inlet sleeve from the air filter unit
    • the battery
    • the battery tray
    • the air filter unit.

6-SPEED AUTOMATIC GEARBOX

Engine mounting

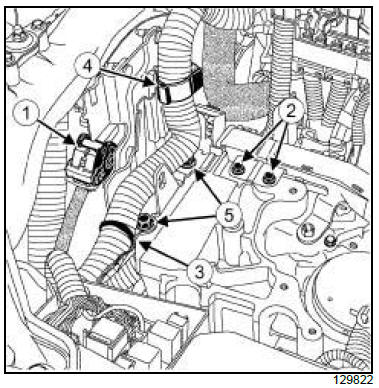

  • Disconnect the automatic transmission computer connector (1) .



  • Remove the bolts (2) from the wiring bracket.
  • Unclip:
    • the wiring at (3) ,
    • the wiring at (4) .
  • Remove:
    • the automatic transmission computer mounting bolts (5) ,
    • the earth cable.

6-SPEED MANUAL GEARBOX

  • Remove the automatic transmission computer mounting.

6-SPEED AUTOMATIC GEARBOX

  • Remove the " automatic transmission computer - mounting " assembly.

Engine mounting

  • Remove:

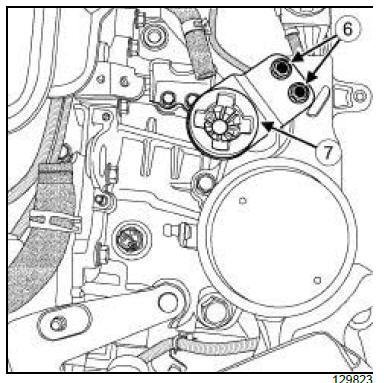

    • the bolts (6) from the air filter unit support,
    • the air filter unit support (7) .

Engine mounting

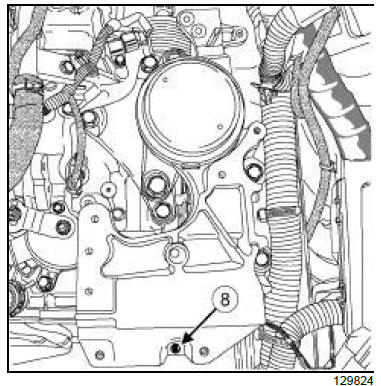

  • Unclip the wiring at (8) .

6-SPEED MANUAL GEARBOX

Engine mounting

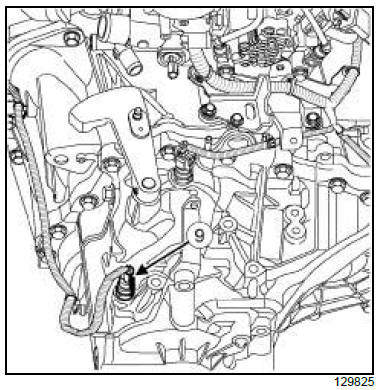

  • Disconnect the reverse gear position switch connector (9) .

Engine mounting

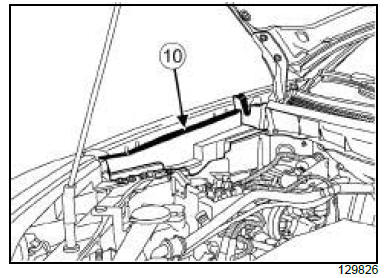

  • Remove the left-hand and right-hand bonnet seals (10) .

Engine mounting

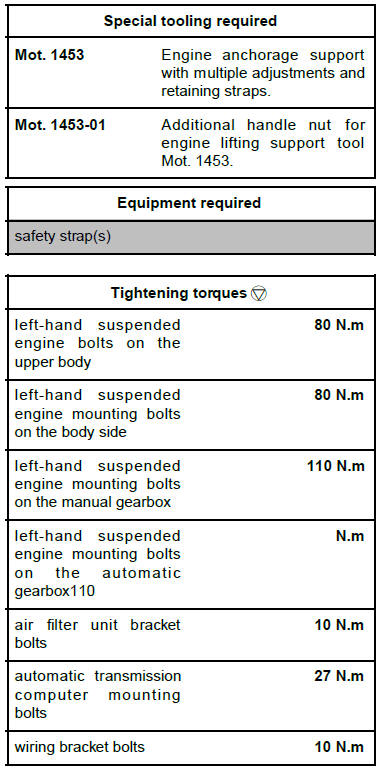

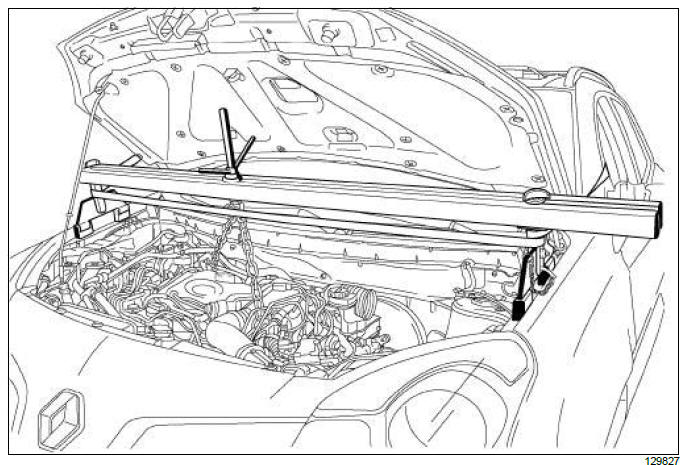

  • Fit the (Mot. 1453) and the (Mot. 1453-01) using safety strap(s).
  • Remove:
    • the engine undertray
    • the front left-hand wheel
    • the front left-hand splash guard .

II - OPERATION FOR REMOVAL OF PART CONCERNED

6-SPEED MANUAL GEARBOX

Engine mounting

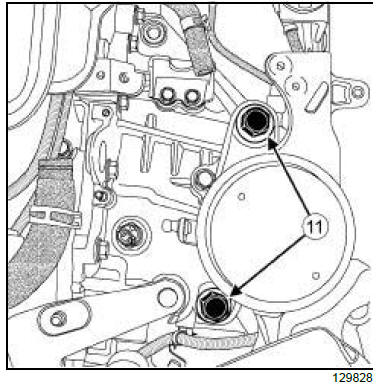

  • Remove the left-hand suspended engine bolts (11) on the manual gearbox.

6-SPEED AUTOMATIC GEARBOX

Engine mounting

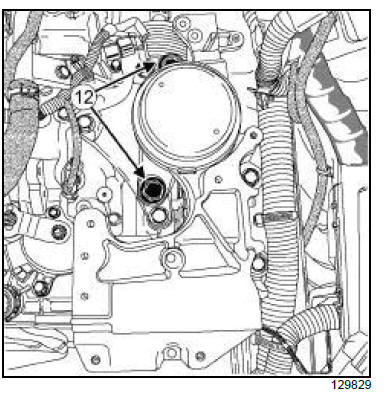

  • Remove the left-hand suspended engine bolts (12) on the automatic gearbox.

Engine mounting

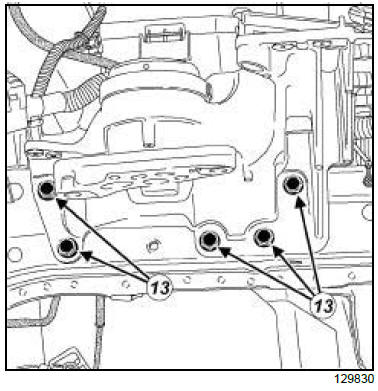

  • Remove the left-hand suspended engine bolts (13) on the body side.

Engine mounting

  • Remove:

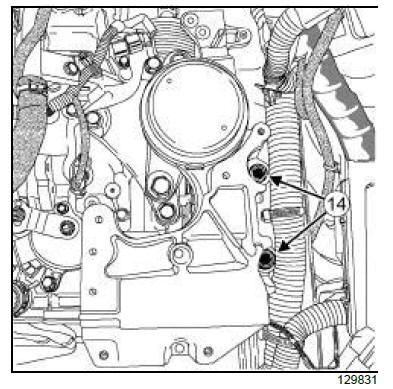

    • the left-hand suspended engine bolts (14) on the upper body,
    • the left-hand suspended engine mounting.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Fit the left-hand suspended engine mounting.

Engine mounting

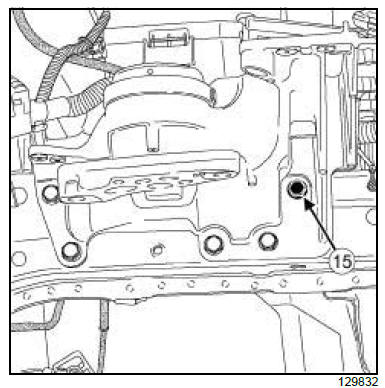

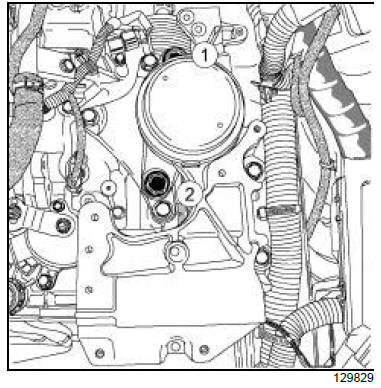

  • Refit without tightening the left-hand suspended engine bolt (15) on the body side.

Engine mounting

  • Refit the left-hand suspended engine bolts on the upper body.

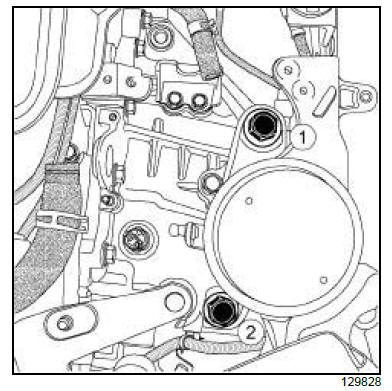

  • Torque tighten in order the left-hand suspended engine bolts on the upper body (80 N.m).

Engine mounting

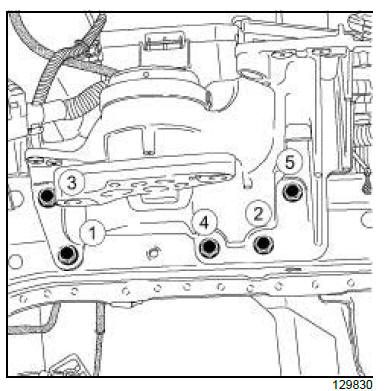

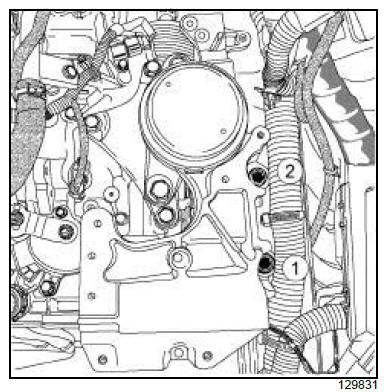

Note: Use a torque wrench and an open-end wrench adapter to torque tighten bolts (1) and (4) .
  • Refit the left-hand suspended engine mounting bolts on the body side.
  • Torque tighten in order the left-hand suspended engine mounting bolts on the body side (80 N.m).

6-SPEED MANUAL GEARBOX

Engine mounting

  • Refit the left-hand suspended engine bolts on the manual gearbox.
  • Torque tighten in order the left-hand suspended engine mounting bolts on the manual gearbox (110 N.m).

6-SPEED AUTOMATIC GEARBOX

Engine mounting

  • Refit the left-hand suspended engine bolts on the automatic gearbox.
  • Torque tighten in order the left-hand suspended engine mounting bolts on the automatic gearbox110 (N.m).

II - FINAL OPERATION

  • Refit:
    • the front left-hand splash guard
    • the front left-hand wheel
    • the engine undertray.
  • Remove (Mot. 1453) and the (Mot. 1453-01) and the safety strap(s).
  • Refit the left-hand and the right-hand bonnet seals.

6-SPEED MANUAL GEARBOX

  • Disconnect the reverse gear switch connector.



  • Clip on the wiring at (8) .
  • Refit:
    • the air filter box mounting,
    • the air filter box support bolts.
  • Torque tighten the air filter unit bracket bolts (10 N.m).

6-SPEED MANUAL GEARBOX

  • Position the automatic transmission computer mounting.

6-SPEED AUTOMATIC GEARBOX

  • Position the " automatic transmission computer-mounting " assembly.



  • Refit:
    • the earth cable,
    • the automatic transmission computer mounting bolts.
  • Torque tighten the automatic transmission computer mounting bolts (27 N.m).
  • Clip:
    • the wiring at (4) ,
    • the wiring at (3) .
  • Refit the wiring bracket bolts.
  • Torque tighten the wiring bracket bolts (10 N.m).

6-SPEED AUTOMATIC GEARBOX

  • Connect the automatic transmission computer connector.



  • Refit:
    • the air filter unit ,
    • the battery tray,
    • the battery,
    • the air inlet sleeve from the air filter unit,
    • the air inlet sleeve clips.
    Left-hand suspended engine mounting: Removal - Refitting

    2TR, and FK0 or FK8
